Your trusted manufacturer supplying stone machinery, woodworking machinery and all stone tooling and equipment.
1
Benefits
3-Axis Precision Cutting
The 3 axis setup allows you to do precise cuts providing excellent finish quality traveling the cutting head in X and Y directions on the whole cutting area, plus the Z axis that will be able to calibrate the highest cutting edge and will travel above the material slab.
2
Benefits
Pump Unit
One of the most important parts of a waterjet machine is the pump. This waterjet uses a H2O high-pressure pump system containing a big 37kW(50hp) Siemens motor, Bosch Rexroth variable oil pump and an American KMT-H2O intensifier.
3
Benefits
Easy To Use Interface
The machine’s interface includes touchscreen 19 inches monitor, wireless keyboard and mouse. Our waterjet machines are powered by IGEMS, a Swedish CAD/CAM Software for waterjet cutting machines with thousands of users, from small job shops to big manufacturing plants

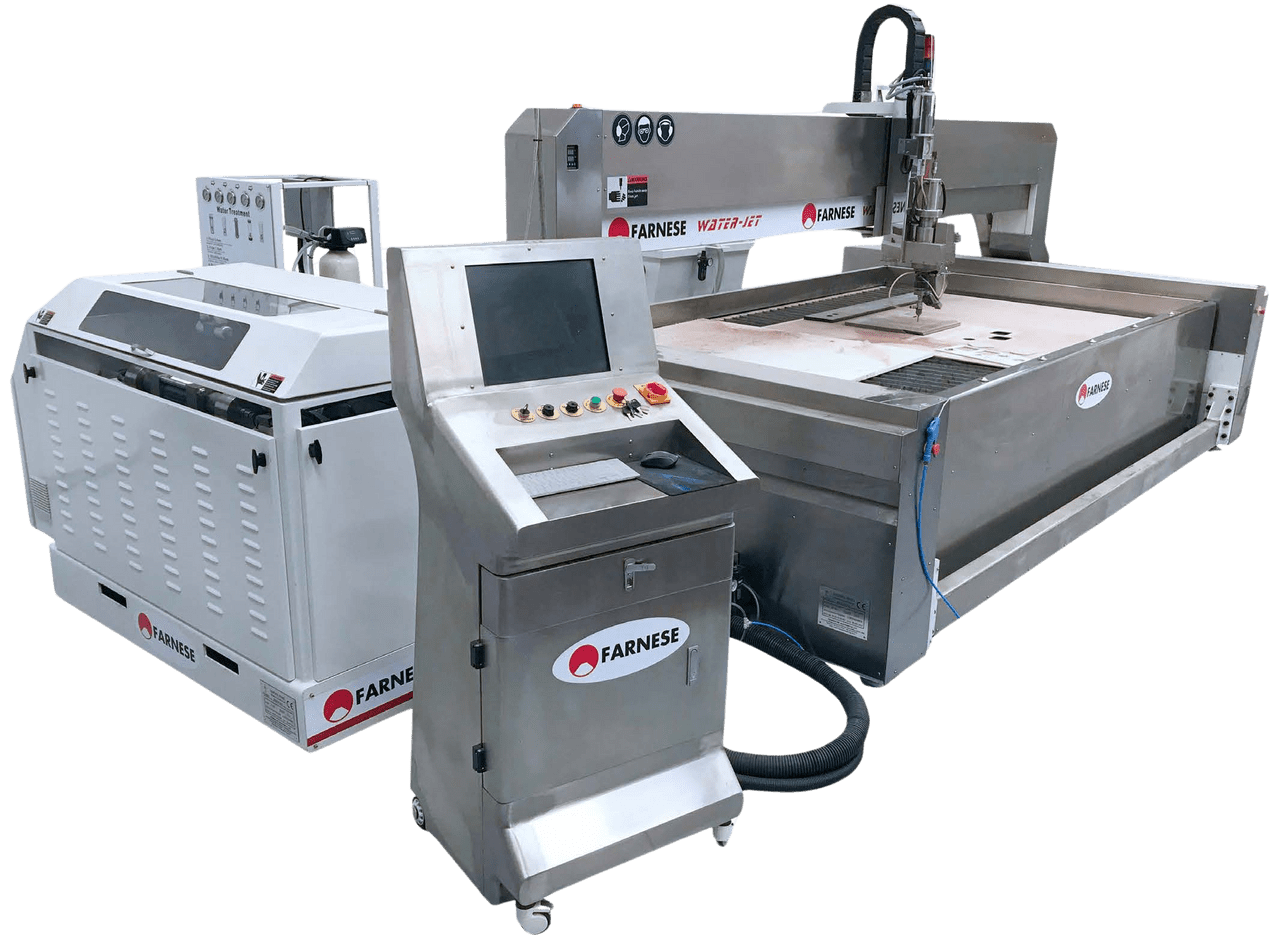

WaterJet 3 Axis
4000 x 2000
The WATERJET is the most versatile cutting machine that money can buy. It enables the cutting of stone and other types of materials, allowing you to expand your business into other markets. The WATERJET empowers you to cut glass, plastics and many other materials with no setup or tool changing required.
.
YEARS OF INDUSTRY
EXPERIENCE
Farnese is a designer and manufacturer of its products. Knowing our products entirely,
including every technical detail, gives us an advantage over the opposition.
Summary of Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
- 3-axis CNC cutting system
- 4000×2000mm cutting area
- Yaskawa servo motors (Japan)
- German linear rails/bearings
- Touchscreen interface with wireless controls
- Auto lubrication and stainless covers
- 60,000psi high-pressure pump system
- 100L abrasive bucket with auto feed
- Laser-guided cutting head calibration
Technical Specifications
| Dimensions of Installed Machine | Metric | Imperial |
|---|---|---|
|
Width |
3000 mm
|
118.1 in |
|
Depth |
1130 mm |
44.5 in |
|
Height |
1960 mm
|
77.2 in |
|
Weight |
900 kg |
1980.0 lb |
|
|
||
|
Features and Feeds |
||
|
Mixing Station
|
YES |
|
|
Automatic Sludge Control |
YES |
|
|
Touchscreen Interface
|
YES |
|
|
Big Bag Trolley
|
YES |
|
|
Automatic Sludge Dumping |
YES |
|
|
Dripping Tank
|
YES |
|
|
Mixing Tank Capacity |
650 Litres |
171.7 GAL |
|
Number of Filters |
10 |
|
|
Power Required |
400v 3ph 50Hz |
208v 3ph 60Hz |
|
10A + Neutral |
20A |
|
|
Connections Required (Supplied By Customer): |
Power, Water, Compressed Air |
|
|
Tooling |
Consult Your Local Farnese Dealer For Any Tooling Required |
|
