WaterJet 5 Axis
3600 x 2000

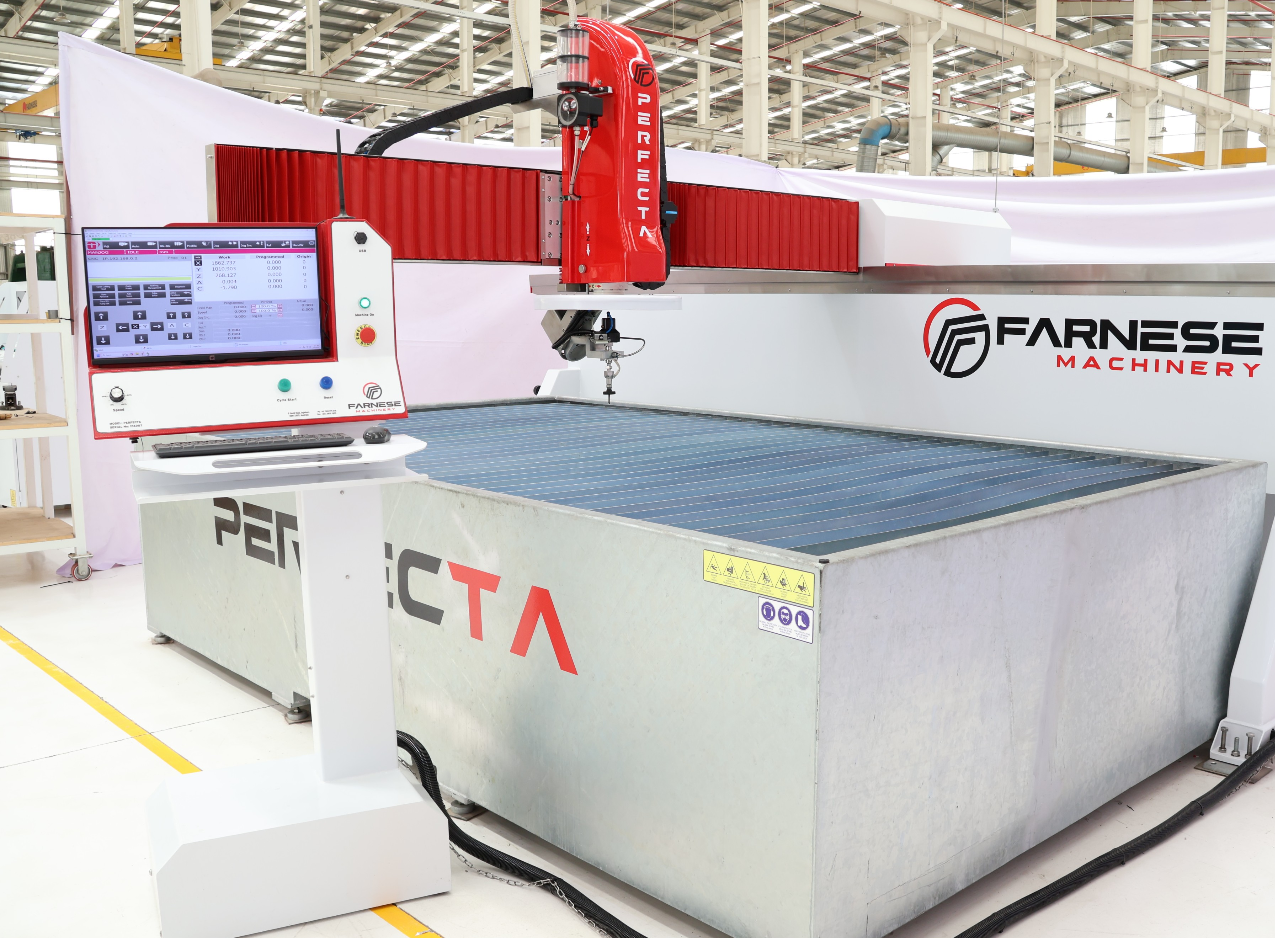

The Perfecta is the most versatile cutting machine that money can buy. It enables the cutting of stone and other types of materials, allowing you to expand your business into other markets. The Perfecta empowers you to cut glass, plastics and many other materials with no setup or tool changing required.
.
YEARS OF INDUSTRY
EXPERIENCE
Farnese is a designer and manufacturer of its products. Knowing our products entirely,
including every technical detail, gives us an advantage over the opposition.
Summary of Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
- Full 5-Axis capability
- Easy to use dedicated CAD/CAM system.
- Optional tank slurry emptying system
- Reliable high-pressure intensifier pump
- Easy-to-replace table slat system
- Fully automatic lubrication system
- Material probing for accurate mitre cutting
- Fully galvanised table / tank construction for extended lifecycle
Technical Specifications
| Dimensions of Installed Machine | Metric | Imperial |
|---|---|---|
| Width | 4806.50 mm | 189.2 in |
| Depth | 4037.50 mm | 158.9 in |
| Height | 2456 mm | 96.6 in |
| Weight | 955 kg | 2105.41 lb |
This equipment can be installed outdoors, consult your local Farnese dealer.
| Features and Feeds | ||
| Mixing Station | YES | |
| 21” Screen Interface | YES | |
| AlphaCAM WJ software | YES | |
| Automatic lubrication system | YES | |
| Adjustable garnet control | YES | |
| Mixing Tank Capacity | 171.7 GAL | |
| Number of Filters | 3 | |
| Power Required | 400V 3ph 50Hz 60A |
|
