- Key Benefit
Small Machine, Big Impact
The Farnese EasySink is a compact CNC machine designed for efficient and cost-effective undermount sink fabrication. Its small footprint makes it ideal for workshops with limited space. The EasySink’s simple, easy-to-use software, combined with a large predefined sink library, simplifies the design and production process, even for novice u
Easysink
Compact affordable solution for undermounts
The Farnese EasySink is a compact CNC machine designed for efficient and cost-effective undermount sink fabrication. Its small footprint makes it ideal for workshops with limited space. The EasySink’s simple, easy-to-use software, combined with a large predefined sink library, simplifies the design and production process, even for novice users.
.
YEARS OF INDUSTRY
EXPERIENCE
Farnese is a designer and manufacturer of its products. Knowing our products entirely,
including every technical detail, gives us an advantage over the opposition.
Summary of Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
- Compact design
- Affordable price
- Easy tool change
- Simple, user-friendly software
- Extensive predefined sink library
- Full slab handling capability
- Maximum cutout size: 1360mm x 650mm

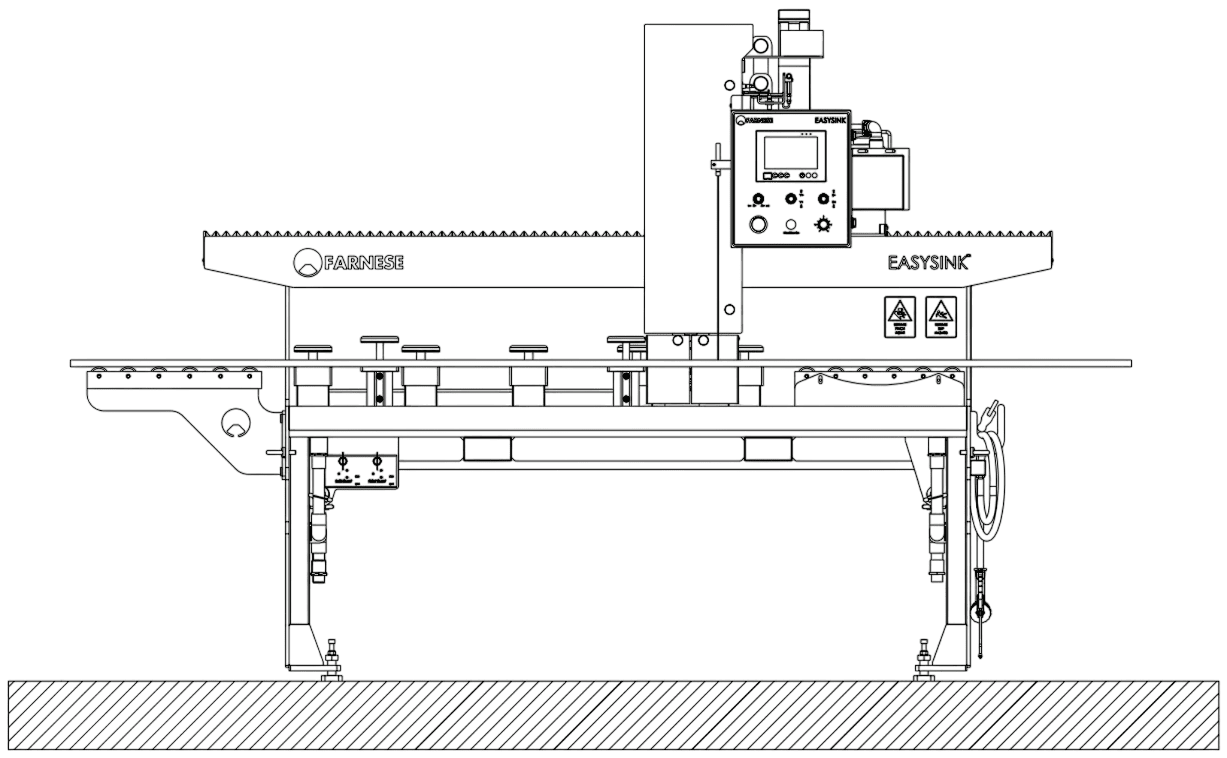

Technical Specifications
| Dimensions of Installed Machine | Metric | Imperial |
|---|---|---|
|
Length |
2800 mm |
110.2 in |
|
Width |
1900 mm |
74.8 in |
|
Height |
2100 mm |
82.7 in |
|
Weight |
1500 kg |
3300 lb |
|
|
||
|
Features and Feeds |
||
|
Maximum Cutout Length |
1360 mm |
53.54 in |
|
Maximum Cutout Width |
650 mm |
25.59 in |
|
Z Stroke (Head Up and Down) |
600 mm |
23.6 in |
|
Air Pressure (Working) |
6 bar |
87 psi |
|
Air Pressure (Consumption) |
20 l/min |
5.3 g/min |
|
Water (Consumption) |
Clear |
20 l/min |
|
Recycled |
50 l/min |
|
|
Magazine |
No |
No |
|
Vacuum Cups |
Yes / 5X |
Yes / 5X |
|
Vacuum Generator |
Yes |
Yes |
|
Back Clamps |
No |
No |
|
Front Clamps |
Yes / 2X |
Yes / 2X |
|
Manual Greasing |
Yes |
Yes |
|
Laser Cutting Guide |
Yes |
Yes |
|
Microsoft Windows Compatible |
Yes |
Yes |
|
Automatic Tool Changer |
No |
No |
|
Handwheel |
Yes |
Yes |
|
Main Spindle Power (Min & Max) |
6.6 kW |
8.8 hp |
|
Main Spindle Speed |
500 – 6000 rpm |
500 – 6000 rpm |
|
Power Required |
400V 3ph 50Hz |
208v 3ph 60Hz |
|
20A + Neutral |
40A |
|
|
Connections Required (Supplied By Customer): |
Power, Water, Compressed Air |
|
|
Tooling |
Consult Your Local Farnese Dealer For Any Tooling Required |
|
*Owing to the constant updating of our designs, descriptions and technical data shown in our drawings and folders are not binding. Possible alterations deemed by the makers as convenient will be effected at any time without previous notice.
