  • WIRE SAWS

Wire Saw

Download brochure
  • Key Benefit

High-Precision & Efficient Stone Cutting

The Farnese Wire Saw offers versatile configurations, robust construction, and advanced control for precise and efficient cutting of thick stone slabs.

Wire Saw

Block wire saw single or multi aixs

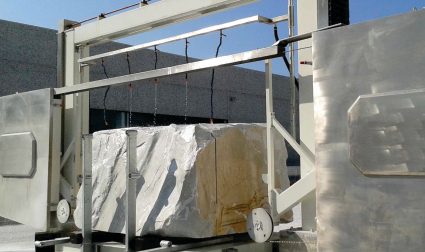

The Farnese Wire Saw is a high-precision wire saw designed for cutting thick slabs of sandstone, marble, and granite. Its robust construction, versatile configurations, and advanced control system ensure efficient and accurate cutting, minimizing material waste and maximizing productivity.
.

YEARS OF INDUSTRY
EXPERIENCE

Farnese is a designer and manufacturer of its products. Knowing our products entirely, including every technical detail, gives us an advantage over the opposition.

Summary of Features

With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
  • Robust steel frame
  • 8 linear guides
  • Stationary, gantry, & dual configurations
  • 18.5kW asynchronous motor
  • Brushless motor downfeed control
  • Adaptive downfeed adjustment
REQUEST A QUOTE

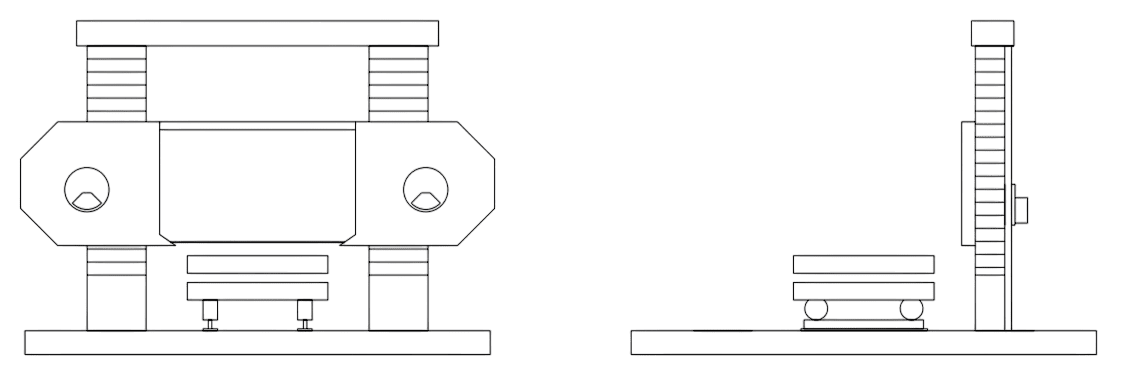

Technical Specifications

Dimensions of Installed Machine Metric Imperial
Width
9400 mm
370.1 in
Depth
1100 mm
43.3 in
Height
5550 mm
218.5 in
Features and Feeds
Table Width
2000 mm
78.7 in
Table Depth
3000 mm
118.1 in
Table Loading Capacity
4000 kg
8800 lb
Cutting Length (Long Travel Stroke)
4000 mm
157.5 in
Cutting Height (Head Up and Down)
2150 mm
84.6 in
Cutting Speed
8-40 m/min
315-1575 in/min
Main Flywheel Diameter
2150 mm
84.6 in
Automatic Greasing
Optional
Optional
Manual Greasing
Yes
Yes
Driven Flywheel Motor Power
18.5 kW
25 hp
Total Power Installed
22 kW
30 hp
Connections Required (Supplied By Customer):
Power, Water, Compressed Air
Tooling
Consult Your Local Farnese Dealer For Any Tooling Required
*Owing to the constant updating of our designs, descriptions and technical data shown in our drawings and folders are not binding. Possible alterations deemed by the makers as convenient will be effected at any time without previous notice.
