- Key Benefit
Effortless & Safe Handling of Heavy Slabs
The Farnese Vacuum Lifter and Jib Crane 360 system provides effortless and safe handling of heavy stone and porcelain slabs, minimizing risk of damage and maximizing operator efficiency.
Vacuum Lifter 6P
Indispensable for your workshop
The VACUUM LIFTER combined with the JIB CRANE 360 gives you the perfect lifting system for all your large and small work.

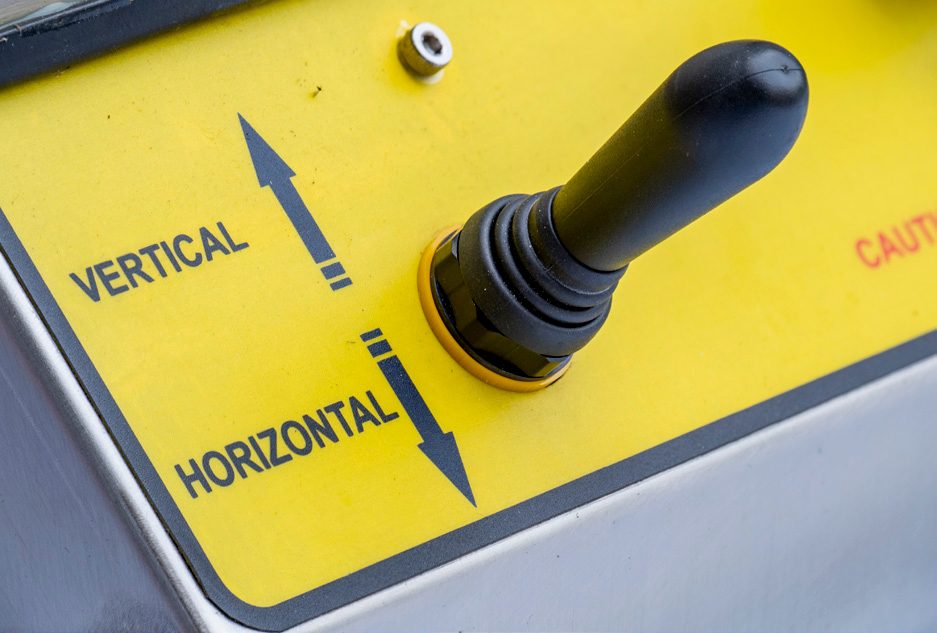

This essential piece of equipment is fitted with a pneumatic tilting piston which provides complete control of vertical and horizontal positions. A continuous air supply combined with a Venturi system generates vacuum into 3 individual pads, allowing you to hold slabs up to 500kg (maximum) and is fitted with a gauge displaying the vacuum intensity. This accessory is also equipped with a manual cleaning system, draining away accumulated water.
.
YEARS OF INDUSTRY
EXPERIENCE
Farnese is a designer and manufacturer of its products. Knowing our products entirely,
including every technical detail, gives us an advantage over the opposition.
Summary of Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
- Ideal for larger slabs
- Tiltable from 0 to 90 degrees
- 6 fully adjustable vacuum pads
- Drain valve
- Glycerine filled vacuum gauge
- Safe working limit of 700kg
Technical Specifications
| Dimensions of Installed Machine | Metric | Imperial |
|---|---|---|
|
Length |
2200 mm |
86.6 in |
|
Width |
1800 mm |
70.9 in |
|
Height |
850 mm |
33.5 in |
|
Weight |
110 kg |
242 lb |
|
Load (Working Load Limit) |
700 kg |
1540 lb |
|
|
||
|

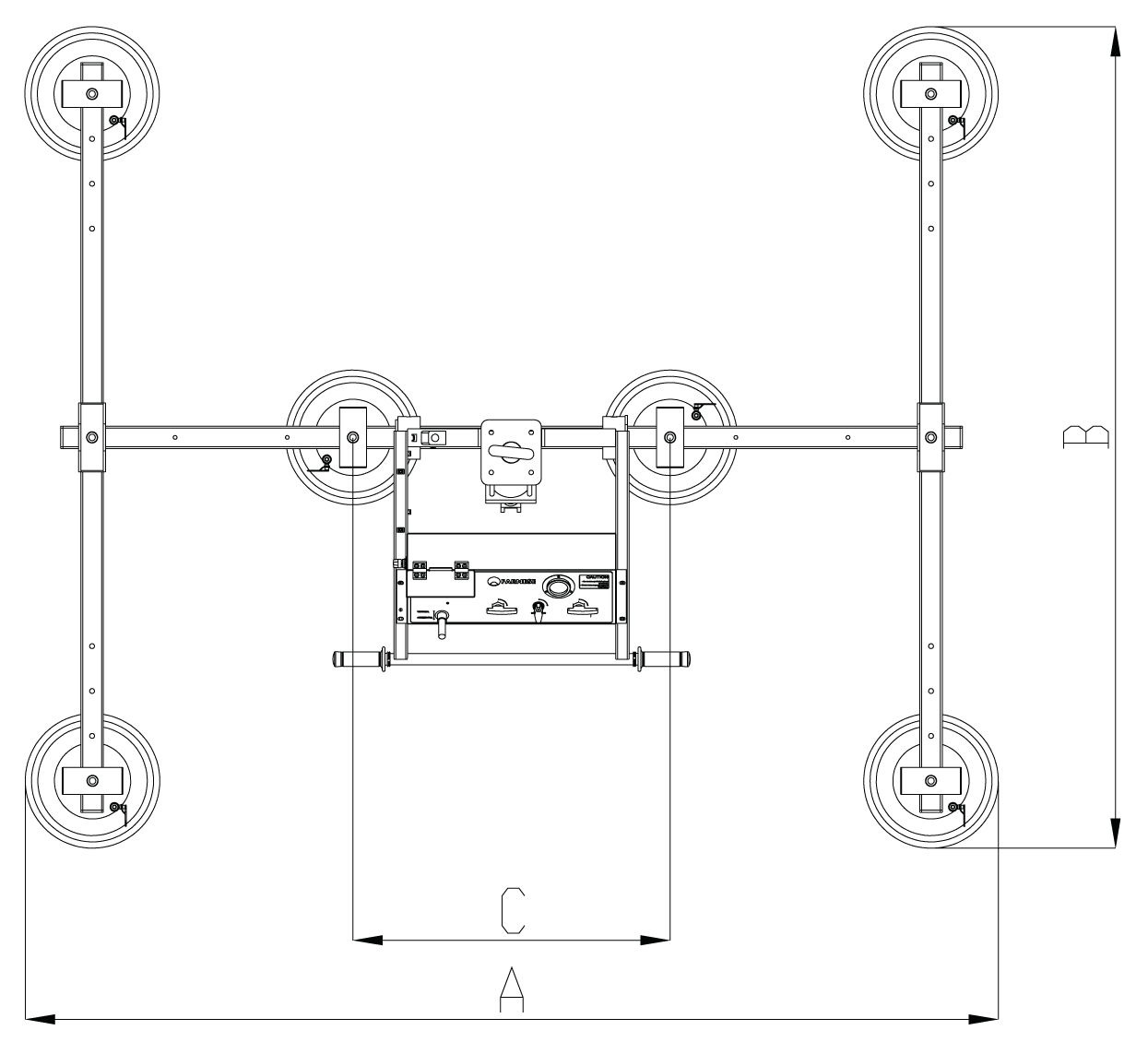

Equipment Ranges |
||
|
Dimension A (Min-Max) |
1800-2170 mm |
70.9-85 in |
|
Dimension B (Min-Max) |
1230-1800 mm |
48-70 in |
|
Dimension C (Min-Max) |
1000-1800 mm |
40-48 in |
|
Air Pressure (Working) |
7 bar |
102 psi |
|
Air Pressure (Consumption) |
350 l/min |
912 cfm |
|
Cleaning Valve |
Yes |
Yes |
|
Glycerine Filled Vacuum Gauge |
Yes |
Yes |
|
Vacuum Generator |
Yes |
Yes |
|
Vacuum Pads |
Yes / 6 Pos |
Yes / 6 Pos |
|
Connections Required (Supplied By Customer): |
Compressed Air |
|
*Owing to the constant updating of our designs, descriptions and technical data shown in our drawings and folders are not binding. Possible alterations deemed by the makers as convenient will be effected at any time without previous notice.
