Technicut Mono
5 Axis Bridge Saw
The Farnese TECHNIMONO CNC BRIDGESAW is a full 5-axis CNC-controlled bridge saw built on a monoblock platform, sharing the same core functionality as the TECHNICUT. It features a user-friendly software and CAD/CAM system for easy template or DXF file integration, allowing for the programming of any 2D shape, including vacuum moves. The touchscreen control pendant ensures intuitive operation.
.
YEARS OF INDUSTRY
EXPERIENCE
Farnese is a designer and manufacturer of its products. Knowing our products entirely,
including every technical detail, gives us an advantage over the opposition.
Summary of Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
- Monoblock frame
- Full 5-axis CNC control
- Touchscreen control panel
- User-friendly interface and software
- CAD/CAM system (Taglio Software available as an option)
- Vacuum manipulators
- Thickness measuring probe
- Blade measuring probe
- Onboard overhead camera
- Automatic lubrication system
- Hydraulic tilting table
- Laser cutting guide
- After-sales service and local parts supply
- Remote access for troubleshooting

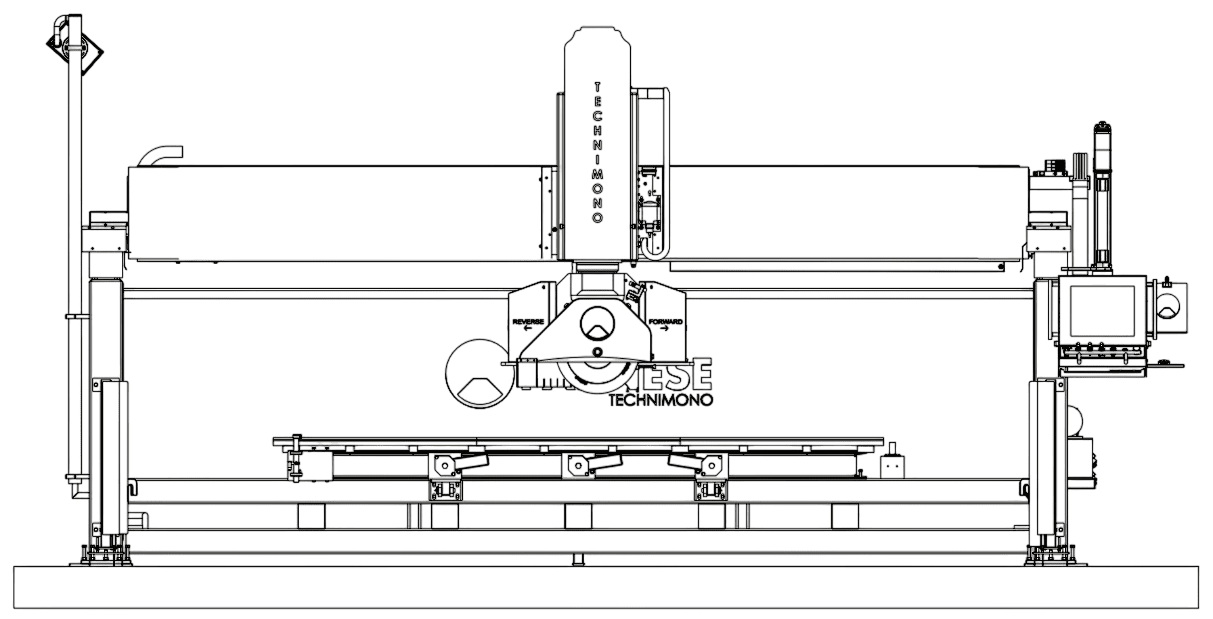

Technical Specifications
| Dimensions of Installed Machine | Metric | Imperial |
|---|---|---|
|
Length |
6838 mm |
269.2 in |
|
Width |
5977 mm |
235.3 in |
|
Height |
3304 mm |
130.1 in |
|
Weight |
5300 kg |
13000 lb |
|
|
||
|
Table |
||
|
Length |
3600 mm |
141.7 in |
|
Width |
2000 mm |
78.7 in |
|
Height |
850 mm |
33.5 in |
|
Rotation |
No |
No |
|
Tilt |
Yes |
Yes |
|
|
||
|
Features and Feeds |
||
|
X Stroke (Cross Travel Stroke) |
3800 mm |
149.6 in |
|
Y Stroke (Long Travel Stroke) |
2300 mm |
90.6 in |
|
Z Stroke (Head Up and Down) |
450 mm |
18 in |
|
Blade Diameter (Recommended) |
450 mm |
18 in |
|
Blade Diameter (Max) |
600 mm |
24 in |
|
Blade Shaft Diameter |
60 mm |
2.36 in |
|
Head Rotation |
0 – 360° |
0 – 360° |
|
Blade Tilt |
0 – 90° |
0 – 90° |
|
Drilling Capability |
Yes |
Yes |
|
Photo Camera |
Yes |
Yes |
|
Laser Cutting Guide |
Yes |
Yes |
|
Thickness Probe |
Yes |
Yes |
|
Vacuum Manipulators / Material Positioning |
Yes |
Yes |
|
Touch Screen |
Yes |
Yes |
|
Galvanized Rails and Table |
Yes |
Yes |
|
Automatic Lubrication |
Yes |
Yes |
|
Microsoft Windows and DXF CAD Compatible |
YES |
YES |
|
Main Spindle Power |
11 kW |
20 hp |
|
Main Spindle Speed |
800 – 3000 rpm |
800 – 3000 rpm |
|
Power Required |
400v 3ph 50Hz |
208v 3ph 60Hz |
|
32A+ Neutral |
60A |
|
|
Connections Required (Supplied By Customer): |
Power, Water, Compressed Air |
|
|
Tooling |
Consult Your Local Farnese Dealer For Any Tooling Required |
|
*Owing to the constant updating of our designs, descriptions and technical data shown in our drawings and folders are not binding. Possible alterations deemed by the makers as convenient will be effected at any time without previous notice.
