- Key Benefit
Unmatched Capacity for Large-Scale Cutting
The primary advantage of the STUDIO saw is its capacity to accommodate exceptionally large blades (up to 1000mm diameter), allowing for the cutting of workpieces up to 370mm wide. This makes it particularly suitable for sandstone processing.

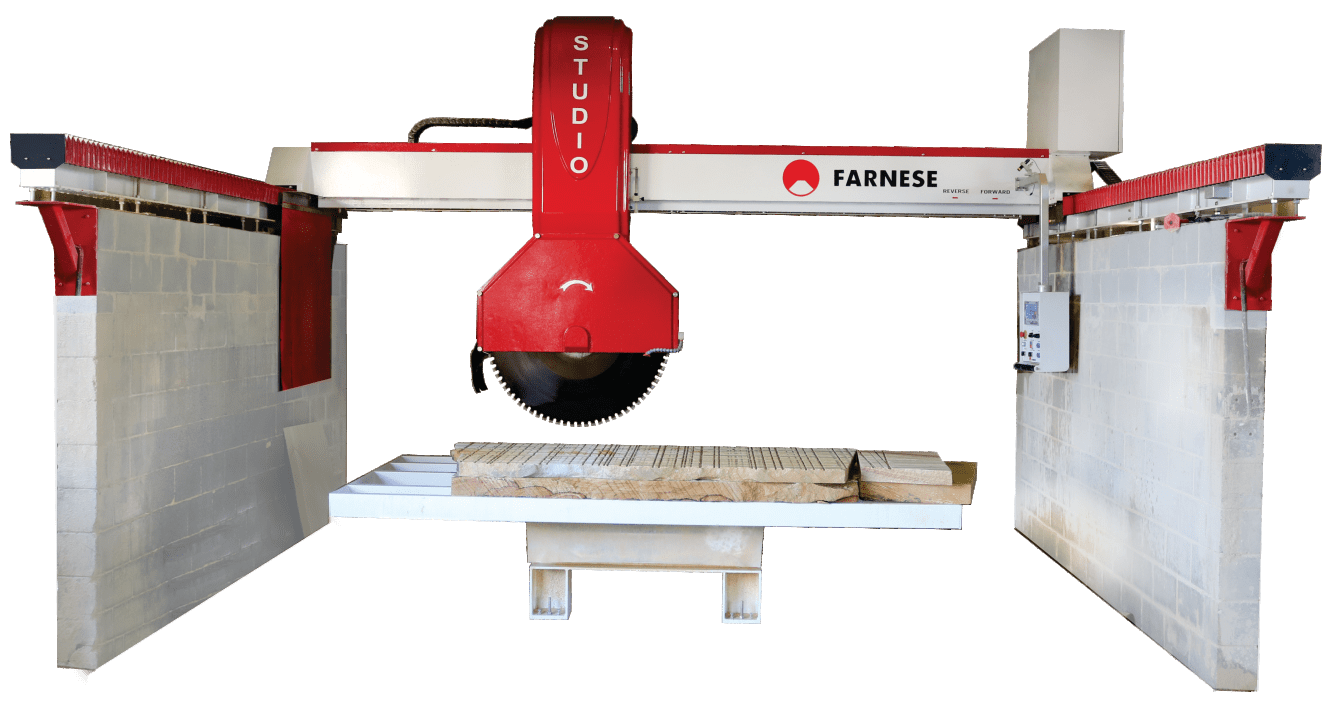

Studio
Ideal for sandstone block work
The STUDIO saw is built with high-strength steel for its main beam and head, ensuring durability and precision. The machining process guarantees maximum straightness and smoothness in cuts, while the precisely machined table ensures maximum flatness and accuracy in the working plane. A tilting table is available upon request. The head manually tilts from vertical to 60 degrees, enabling step cutting at the set angle. The machine features a durable, corrosion-resistant paint finish applied after sandblasting for enhanced longevity.
.
YEARS OF INDUSTRY
EXPERIENCE
Farnese is a designer and manufacturer of its products. Knowing our products entirely,
including every technical detail, gives us an advantage over the opposition.
Summary of Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
- Accommodates blades up to 1000mm in diameter
- Maximum cutting width up to 370mm
- High-strength steel construction (main beam and head)
- Precisely machined beam and table for accuracy
- Manual head tilt (vertical to 60 degrees)
- Step cutting capability
- Durable, corrosion-resistant paint finish
- Standard table for heavy-duty applications
- Optional laser indicator and tilting table

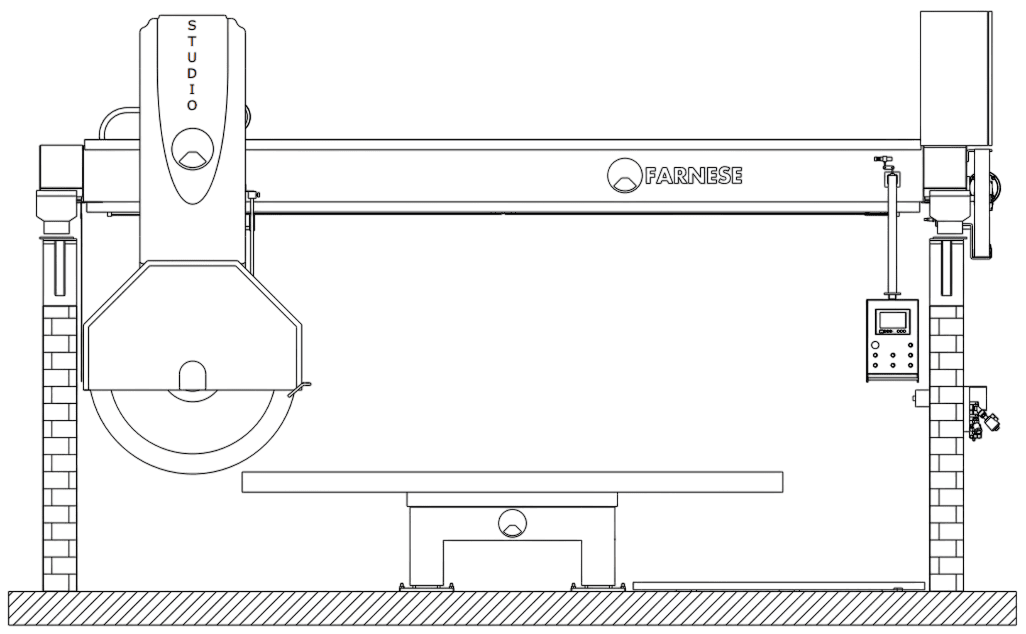

Technical Specifications
| Dimensions of Installed Machine | Metric | Imperial |
|---|---|---|
|
Length |
5800 mm |
228.3 in |
|
Depth |
5800 mm |
228.3 in |
|
Height |
3500 mm |
137.8 in |
|
Weight |
4000 kg |
8800.0 lb |
|
|
||
|
Table |
||
|
Width |
3200 mm |
126.0 in |
|
Depth |
1800 mm |
70.9 in |
|
Height |
750 mm |
29.5 in |
|
Rotation |
Yes |
Yes |
|
Tilt |
Optional |
Optional |
|
|
||
|
Features and Feeds |
||
|
X Stroke (Cross Travel Stroke) |
3600 mm |
141.7 in |
|
Y Stroke (Long Travel Stroke) |
3400 mm |
133.9 in |
|
Z Stroke (Head Up and Down) |
600 mm |
23.6 in |
|
Blade Diameter (Max) |
1000 mm |
39 in |
|
Blade Shaft Diameter |
60 mm |
2.36 in |
|
Head Rotation |
Yes |
Yes |
|
Blade Tilt |
0 – 45° |
0 – 45° |
|
Manual Greasing |
Optional |
Optional |
|
Laser Cutting Guide |
Yes |
Yes |
|
Main Spindle Power |
14.6 kW |
20 hp |
|
Main Spindle Speed |
960 rpm |
1140rpm |
|
Power Required |
400V 3ph 50Hz |
208v 3ph 60Hz |
|
40A + Neutral |
80A |
|
|
Connections Required (Supplied By Customer): |
Power, Water, Compressed Air |
|
|
Tooling |
Consult Your Local Farnese Dealer For Any Tooling Required |
|
*Owing to the constant updating of our designs, descriptions and technical data shown in our drawings and folders are not binding. Possible alterations deemed by the makers as convenient will be effected at any time without previous notice.
