  • Water Recycling

SILO 7500

Download brochure
  • Key Benefit

Robust and Reliable Recycled Water Purification

The Farnese SILO 7500 system provides robust, high-capacity, efficient removal of mud and sludge from recycled water, minimizing downtime and maximizing water reuse for larger operations.

SILO 7500

Indispensable for your workshop

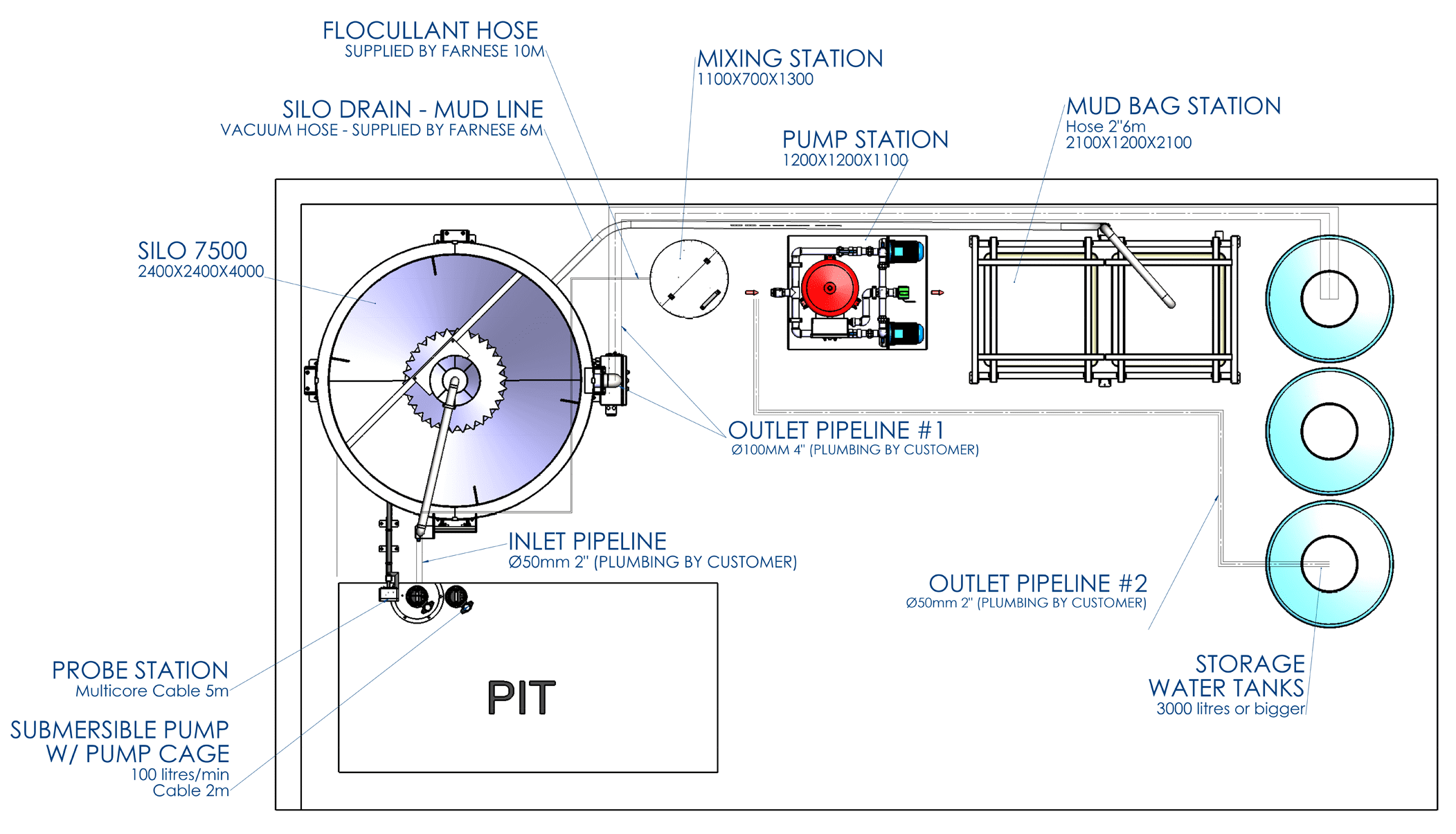

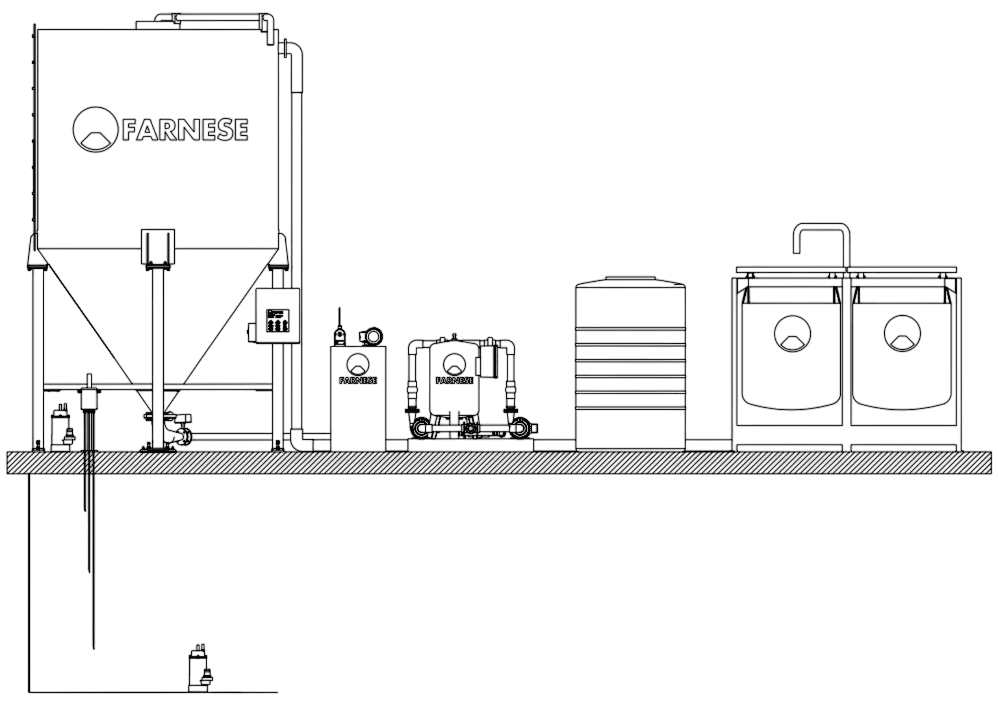

The  SILO 7500 system consists of a 7500 litres stainless steel silo, sludge collection bags and stand, pit pump and a delivery pump back to your factory. The Silo also includes a flocculant system which adds a mixing technique that promotes sludge to flow through your system without it forming a cake and clogging the filtration system.

Farnese recommends a 7000 to 10000 litre storage tank to receive the decanted water from the silo to complete the cycle and a sludge pit to collect the waste water to be processed.

.

YEARS OF INDUSTRY
EXPERIENCE

Farnese is a designer and manufacturer of its products. Knowing our products entirely, including every technical detail, gives us an advantage over the opposition.

Summary of Features

With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
  • 7500 litre stainless steel silo
  • Automatic flocculant unit
  • Mixing station
  • Submersible pit pump
  • Automated pump control
  • 2 sludge collection bags
REQUEST A QUOTE

Technical Specifications

Dimensions of Installed Machine Metric Imperial
Length
9000 mm
354.3 in
Width
3000 mm
118.1 in
Height
4000 mm
157.5 in
Weight
1400 kg
3080 lb
Features & Feeds
Mixing Station
Yes
Yes
Automatic Flocculant Station
Yes
Yes
Water Tanks
Supplied by Customer
Supplied by Customer
Mud Decantation Station
Yes / 2 Pos
Yes / 2 Pos
Pump to the Machines
Yes / 2 Pos
Yes / 2 Pos
Submersive Pumps
Yes / 2 Pos
Yes / 2 Pos
Automated Pump Control
Yes
Yes
Electric Exit Ball Valve
Yes
Yes
Power Required
400V 3ph 50Hz
208V 3ph 60Hz
8A + Neutral
12A
Connections Required (Supplied By Customer):
Power, Water, Compressed Air
*Owing to the constant updating of our designs, descriptions and technical data shown in our drawings and folders are not binding. Possible alterations deemed by the makers as convenient will be effected at any time without previous notice.
