High-Efficiency Mud Removal for Recycled Water
The SILO 2500 is a compact system for the quick removal of mud from your recycled water. It is specially fitted out to quickly and continuously decant the mud and sludge from your underground pit, minimizing downtime and maximizing water reuse.

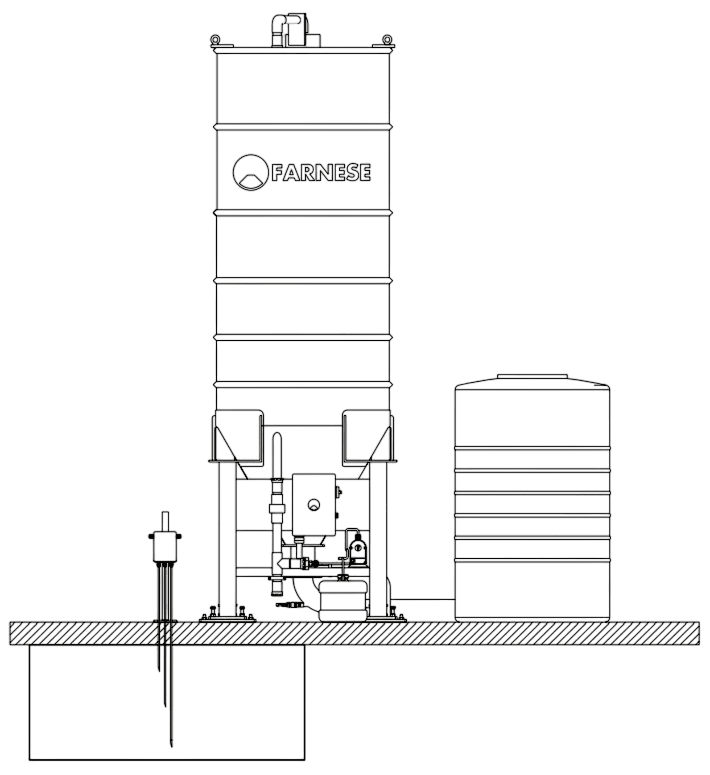

SILO 2500
Indispensable for your workshop

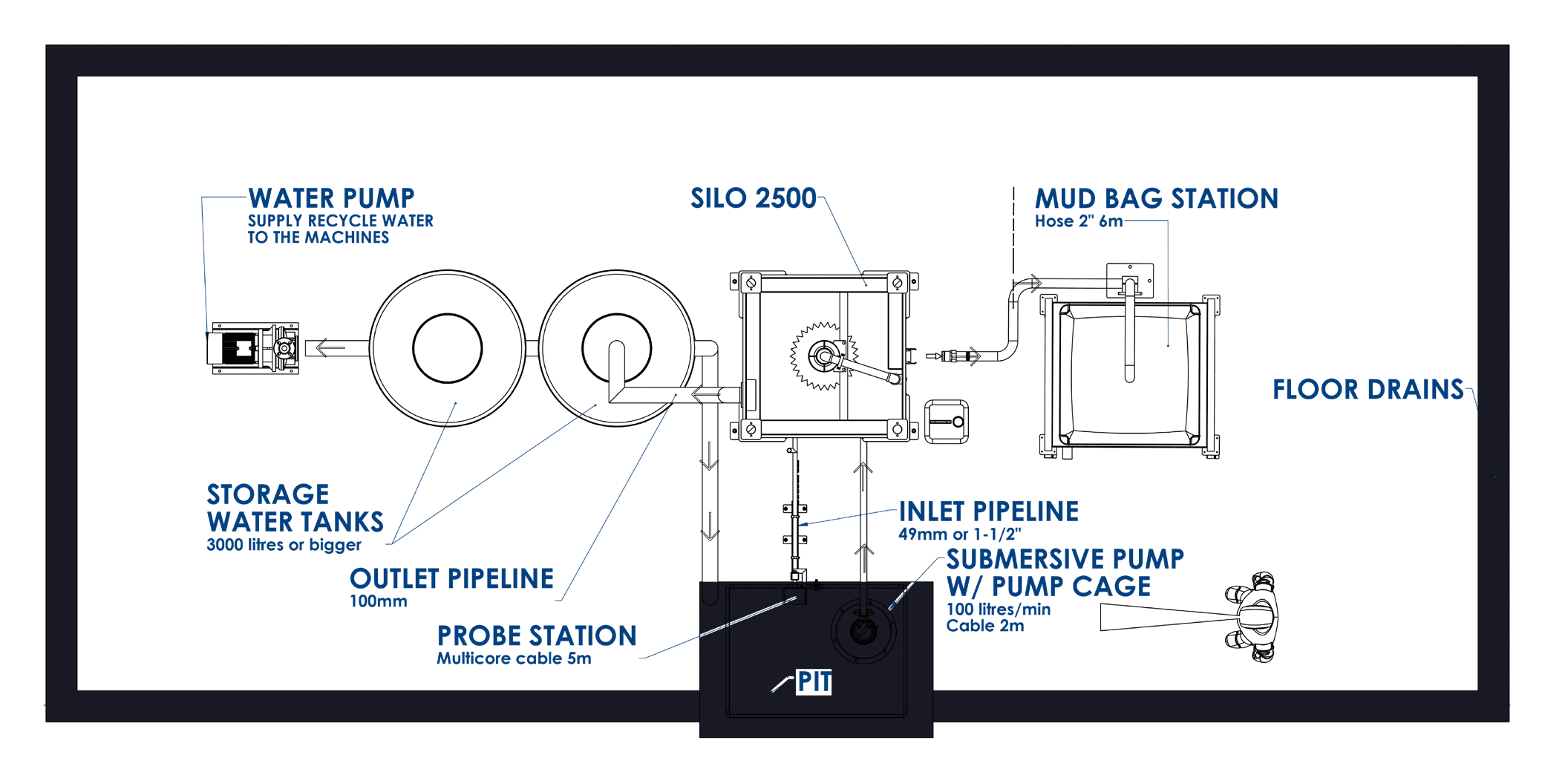

The SILO 2500 consists of a 2500 litres galvanized steel silo, sludge station with collection bags and a pit pump. The Silo also includes a flocculant system which adds a mixing technique that promotes sludge to flow through your system without it forming a cake and clogging the filtration system.
Farnese recommends a 2000 to 5000 litres storage tank to receive the decanted water from the silo to complete the cycle and a sludge pit to collect the waste water to be processed.
.
YEARS OF INDUSTRY
EXPERIENCE
Farnese is a designer and manufacturer of its products. Knowing our products entirely,
including every technical detail, gives us an advantage over the opposition.
Summary of Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
- 2500 litre galvanised steel silo
- Small flocculant unit
- Submersible pit pump
- Automated pump control
- Large sludge collection bag
Technical Specifications
| Dimensions of Installed Machine | Metric | Imperial |
|---|---|---|
|
Length |
1200 mm |
47.2 in |
|
Width |
1200 mm |
47.2 in |
|
Height |
3500 mm |
137.8 in |
|
Weight |
600 kg |
1320 lb |
|
|
||
|
Features & Feeds |
||
|
Mixing Station |
No |
No |
|
Flocculant Station (Small) |
Yes |
Yes |
|
Water Tanks |
Supplied by Customer |
Supplied by Customer |
|
Mud Decantation Station |
Yes / 4 Bags |
Yes / 4 Bags |
|
Pump to the Machines |
Supplied by Custome |
Supplied by Custome |
|
Submersive Pumps |
Yes |
Yes |
|
Automated Pump Control |
Yes |
Yes |
|
Manual Exit Ball Valve |
Yes |
Yes |
|
Power Required |
400V 3ph 50Hz |
208V 3ph 60Hz |
|
1A + Neutral |
2A |
|
|
Connections Required (Supplied By Customer): |
Power, Water, Compressed Air |
|
WATER TANKS AND PLUMBING TO BE SUPPLIED BY THE CUSTOMER
*Owing to the constant updating of our designs, descriptions and technical data shown in our drawings and folders are not binding. Possible alterations deemed by the makers as convenient will be effected at any time without previous notice.
