Multiflat
Multihead Edge polisher
The Farnese Multiflat Edge Polisher is a high-performance machine designed for efficient and high-quality flat polishing. Combining automated operation with a user-friendly design and robust engineering, the Multiflat ensures consistent results, minimizes operator effort, and simplifies maintenance.
.
YEARS OF INDUSTRY
EXPERIENCE
Farnese is a designer and manufacturer of its products. Knowing our products entirely,
including every technical detail, gives us an advantage over the opposition.
Summary of Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
- 4 polishing spindles
- Fully programmable
- 6 moveable clamping feet
- Simple, easy to use software
- Pneumatic rollers to assist with loading
- Outrigger table to support larger pieces
- Handles slabs up to 3200mm

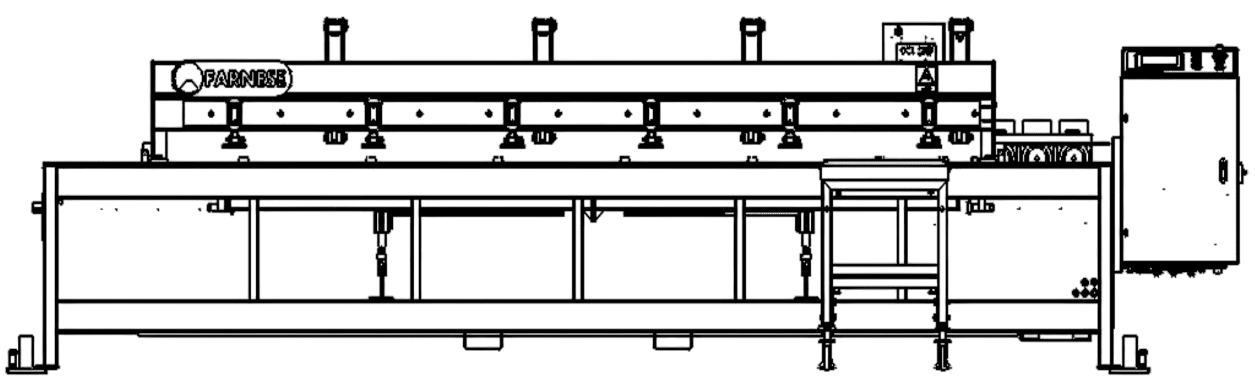

Technical Specifications
| Dimensions of Installed Machine | Metric | Imperial |
|---|---|---|
|
Length |
5300 mm |
208.7 in |
|
Width |
1400 mm |
55.1 in |
|
Height |
1400 mm |
55.1 in |
|
Weight |
1100 kg |
2420 lb |
|
|
||
|
Roller Table Dimensions |
||
|
Length |
1600 mm |
63.0 in |
|
Width |
600 mm |
23.6 in |
|
Height |
800 mm |
31.5 in |
|
|
||
|
Features and Feeds |
||
|
Table Length |
3400 mm |
133.9 in |
|
Table Width |
600 mm |
23.6 in |
|
X Travel (Cutting Stroke) |
3300 mm |
129.9 in |
|
Tool Diameter |
100 mm |
3.9 in |
|
Polishing Speed |
0-8m/min |
14 – 20 in/sec |
|
Thickness Range |
5 – 60 mm |
2 – 2.3 in |
|
Manual Greasing |
Yes |
Yes |
|
Main Spindle Power |
17 kW |
23 hp |
|
Two Speed Spindle |
Yes |
Yes |
|
Power Required |
1450-2000 rpm 400V 3ph 50Hz |
1450-2000 rpm 208V 3ph 60Hz |
|
15A + Neutral |
28A |
|
|
Connections Required (Supplied By Customer): |
Power, Water, Compressed Air |
|
|
Tooling |
Consult Your Local Farnese Dealer For Any Tooling Required |
|
*Owing to the constant updating of our designs, descriptions and technical data shown in our drawings and folders are not binding. Possible alterations deemed by the makers as convenient will be effected at any time without previous notice.
