Your trusted manufacturer supplying stone machinery, woodworking machinery and all stone tooling and equipment.
1
Benefits
Accuracy is the key when cutting mitres
Here at Farnese Australia, we recognise the need of fabricators within the stone industry to satisfy this expectation by producing clean, accurate mitre cuts. The MITRE SAW GEN 2 quickly cuts accurate mitres for a wide range of materials including engineered stone, granite, marble and porcelain, ranging in thickness from 8mm to 40mm.
2
Benefits
Accurate cuts that yield superior results
The Mitre Saw’s accuracy stems from its polished-side-down loading, straight-edge positioning system, and pneumatic clamping for material stability. A specialized blade and variable feed control minimize errors, while pneumatic rollers simplify loading/unloading. The result is consistently precise mitre cuts without measuring or mistakes.
3
Benefits
Safety Feature
Should an operator forget to lower the loading rollers prior to lowering the clamps, the machine will release the rollers when clamps are lowered. Lubrication is taken care of via an automatic system which can be programmed to deliver as necessary.
Mitre Saw Gen 2
Perfect Mitres made simple
The Mitre Saw is the machine upon which Farnese Australia built its reputation as a manufacturer of reliable, affordable machinery. Beginning with the MitreForma and gradually being improved over the years into the current MITRE SAW GEN 2, this machine has always been a consistent market leader amongst the Farnese range.
.
YEARS OF INDUSTRY
EXPERIENCE
Farnese is a designer and manufacturer of its products. Knowing our products entirely,
including every technical detail, gives us an advantage over the opposition.
Summary of Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
- Very easy to use
- Variable feed controller
- Variable spindle speed
- Pneumatic rollers to assist loading and unloading
- Eight pneumatically controlled clamping feet
- Outrigger table to support larger pieces (Additional tables available as optional extras)
- Automatic lubrication system
- Special nylon clamps for securing small pieces

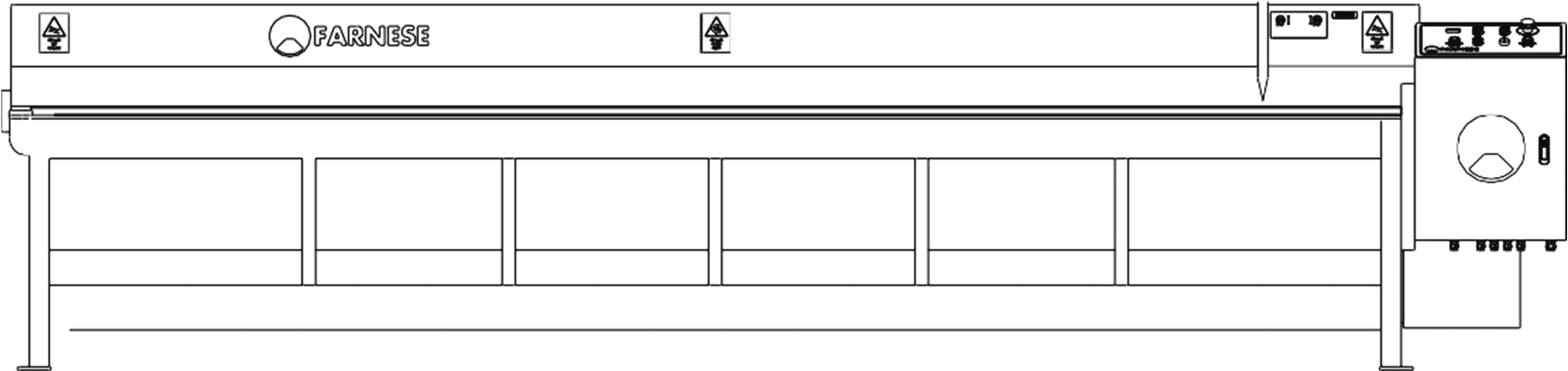

Technical Specifications
| Dimensions of Installed Machine | Metric | Imperial |
|---|---|---|
|
Length |
5050 mm |
236.2 in |
|
Width |
1200 mm |
47.2 in |
|
Height |
1100 mm |
43.3 in |
|
Weight |
1100 kg |
2420 lb |
|
|
||
|
Roller Table Dimensions |
||
|
Length |
1600 mm |
63.0 in |
|
Width |
600 mm |
23.6 in |
|
Height |
800 mm |
31.5 in |
|
|
||
|
Features and Feeds |
||
|
Table Length |
3800 mm |
149.6 in |
|
Table Width |
600 mm |
23.6 in |
|
X Travel (Cutting Stroke) |
143.7 in |
15.0 in |
|
Blade Diameter |
350 mm |
13.8 in |
|
Blade Angle |
45° +/- 1° |
45° +/- 1° |
|
Blade In/Out Movement |
50 mm |
2.0 in |
|
Cutting Speed |
0 – 8m/min |
0 – 315in/min |
|
Main Spindle Power |
4 kW |
5.4 hp |
|
Main Spindle Speed |
1440 rpm |
1720 rpm |
|
Variable Spindle Speed |
YES |
YES |
|
Automatic Central Lubrication |
YES |
YES |
|
Power Required |
100A+ Neutral |
200A |
|
15A + Neutral |
21A |
|
|
Connections Required (Supplied By Customer): |
Power, Water, Compressed Air |
|
|
Tooling |
Consult Your Local Farnese Dealer For Any Tooling Required |
|
|
Optional |
9kW / 12hp spindle motor available at additional cost. |
|
*Owing to the constant updating of our designs, descriptions and technical data shown in our drawings and folders are not binding. Possible alterations deemed by the makers as convenient will be effected at any time without previous notice.
