Massimo Gen2
3 Axis CNC
The Farnese Massimo Gen2 is a mid-size CNC router expertly designed for efficient and precise stone processing. Bridging the gap between our smaller Alexia and the full-size Legend models, the Massimo Gen2 offers a powerful yet user-friendly solution for workshops needing a balance of capability and space efficiency.
.
YEARS OF INDUSTRY
EXPERIENCE
Farnese is a designer and manufacturer of its products. Knowing our products entirely,
including every technical detail, gives us an advantage over the opposition.
Summary of Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
- Mid-size 3-axis CNC
- Touchscreen control panel
- Easy to use interface and software
- CAD / CAM system
- Taglio Software - Advanced CAD/CAM Software solution
- After sales service
- Australian company
- Local supply of spare parts
- Remote access for troubleshooting help

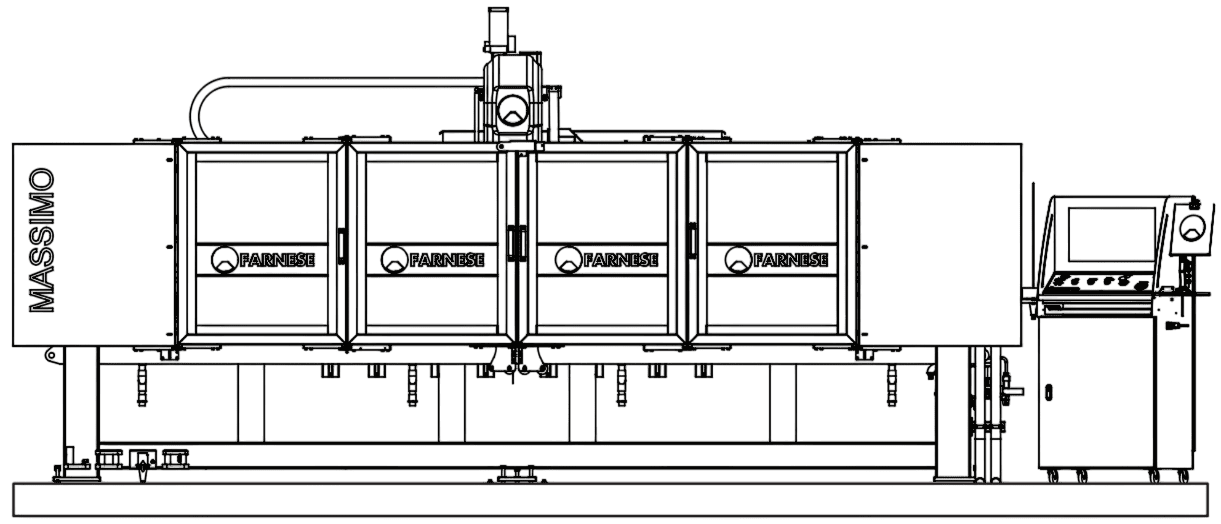

Technical Specifications
| Dimensions of Installed Machine | Metric | Imperial |
|---|---|---|
|
Length |
5685 mm |
223.8 in |
|
Width |
3060 mm |
120.5 in |
|
Height |
2600 mm |
102.4 in |
|
Weight |
3500 kg |
7700 lb |
|
|
||
|
Max Size Of Slab |
||
|
Length |
3200 mm |
126.0 in |
|
Width |
1600 mm |
63.0 in |
|
|
||
|
Features and Feeds |
||
|
X Stroke (Cross Travel Stroke) |
4200 mm |
165.4 in |
|
Y Stroke (Long Travel Stroke) |
1780 mm |
70.1 in |
|
Z Stroke (Head Up and Down) |
200 mm |
7.9 in |
|
Air Pressure (Working) |
7 bar |
102 psi |
|
Air Pressure (Consumption) |
350 l/min |
12.4 cfm |
|
Magazine |
Clear |
Yes / 28 Pos |
|
Recycled |
Yes / 28 Pos |
|
|
Back Clamps |
Yes |
Yes |
|
Front Clamps |
Yes / 2X |
Yes / 2X |
|
Automatic Greasing |
Yes |
Yes |
|
Microsoft Windows Compatible |
Yes |
Yes |
|
Automatic Tool Changer |
Yes |
Yes |
|
Handwheel |
Yes |
Yes |
|
Main Spindle Power (Min & Max) |
6.6 kW |
8.8 hp |
|
Main Spindle Speed |
500 – 12000 rpm |
500 – 12000 rpm |
|
Power Required |
400V 3ph 50Hz |
208v 3ph 60Hz |
|
20A + Neutral |
40A |
|
|
Connections Required (Supplied By Customer): |
Power, Water, Compressed Air |
|
|
Tooling |
Consult Your Local Farnese Dealer For Any Tooling Required |
|
*Owing to the constant updating of our designs, descriptions and technical data shown in our drawings and folders are not binding. Possible alterations deemed by the makers as convenient will be effected at any time without previous notice.
