MARC5
Advanced Bridge Saw
The MARC5 from Farnese stands proudly at the entry to the world of fully CNC controlled 5 axis bridge saws.
It couples the onboard CNC controller with easy to use software, making this one of the most versatile, user friendly machines on the market, a real trademark of the Farnese brand.
.
YEARS OF INDUSTRY
EXPERIENCE
Farnese is a designer and manufacturer of its products. Knowing our products entirely,
including every technical detail, gives us an advantage over the opposition.
Summary of Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
- Easy-to-use software
- Fully automatic, parametric, semi-automatic, and manual cutting modes
- Table tilts from 0° to 80° for easy loading and unloading
- Heavy-duty hydraulic pistons for table tilting

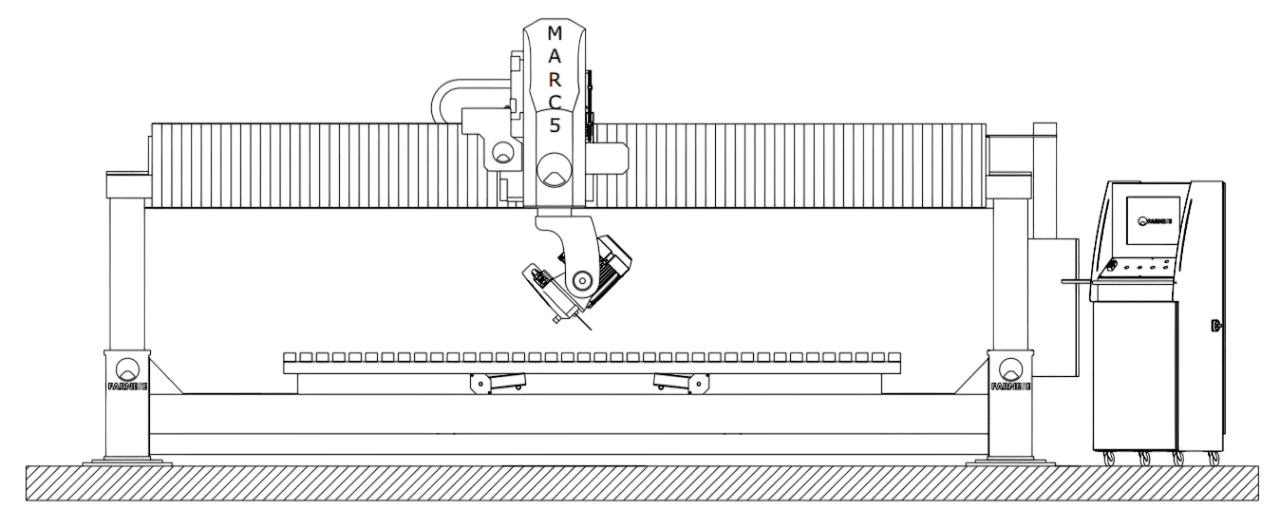

Technical Specifications
| Dimensions of Installed Machine | Metric | Imperial |
|---|---|---|
|
Length |
5925 mm |
233.3 in |
|
Width |
4265 mm |
167.9 in |
|
Height |
2600 mm |
102.4 in |
|
Weight |
3200 kg |
7054.8 lb |
|
|
||
|
Table |
||
|
Length |
3600 mm |
141.7 in |
|
Width |
1800 mm |
70.9 in |
|
Height |
660 mm |
26.0 in |
|
Rotation |
No |
No |
|
Tilt |
Yes |
Yes |
|
|
||
|
Features and Feeds |
||
|
X Stroke (Cross Travel Stroke) |
3800 mm |
149.6 in |
|
Y Stroke (Long Travel Stroke) |
2700 mm |
106.3 in |
|
Z Stroke (Head Up and Down) |
300 mm |
11.8 in |
|
Blade Diameter (Recommended) |
450 mm |
18 in |
|
Blade Diameter (Max) |
550 mm |
22 in |
|
Blade Shaft Diameter |
60 mm |
2.36 in |
|
Blade Tilt |
0-90° |
0-90° |
|
Head Rotation |
0-360° |
0-360° |
|
Drilling Capability |
Yes |
Yes |
|
Photo Camera |
Optional |
Optional |
|
Laser Cutting Guide |
YES |
YES |
|
Thickness Probe |
YES |
YES |
|
Microsoft Windows and DXF CAD Compatible |
YES |
YES |
|
Main Spindle Power |
11 kW |
20 hp |
|
Main Spindle Speed |
800-3000 rpm |
800-3000 rpm |
|
Power Required |
400v 3ph 50Hz |
208v 3ph 60Hz |
|
32A+ Neutral |
60A |
|
|
Connections Required (Supplied By Customer): |
Power, Water, Compressed Air |
|
|
Tooling |
Consult Your Local Farnese Dealer For Any Tooling Required |
|
*Owing to the constant updating of our designs, descriptions and technical data shown in our drawings and folders are not binding. Possible alterations deemed by the makers as convenient will be effected at any time without previous notice.
