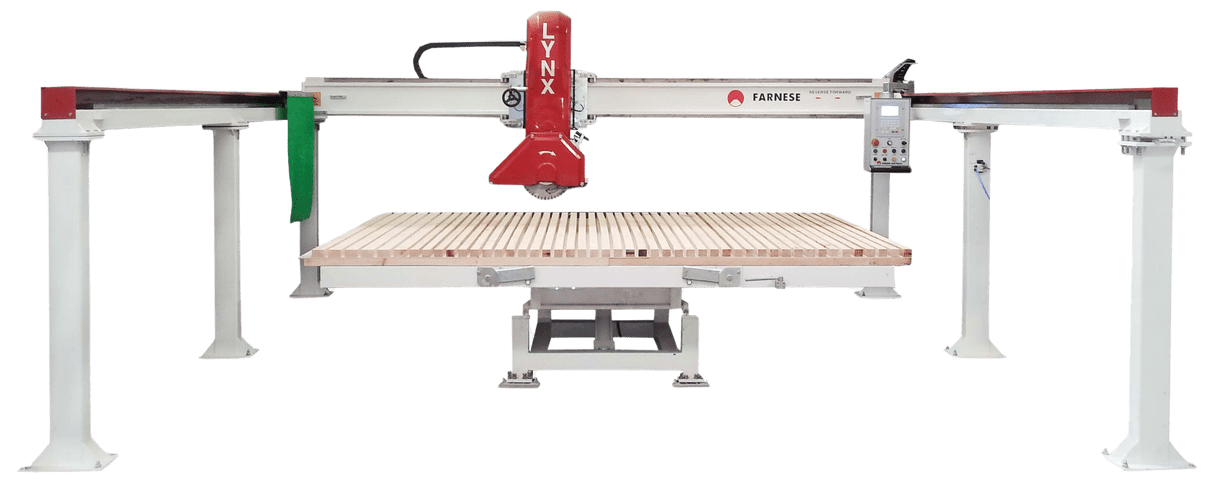

Lynx
Bridge Saw
The LYNX is our entry level bridge saw, suitable as a primary or secondary saw in any factory. Designed and built for those who require accuracy and versatility, at a price that won’t burn a hole in the pocket, the Lynx’s simple construction consists of one main beam (the bridge), travelling on two side rails. Precise engineering ensures accurate cuts every time.
.
YEARS OF INDUSTRY
EXPERIENCE
Farnese is a designer and manufacturer of its products. Knowing our products entirely,
including every technical detail, gives us an advantage over the opposition.
Summary of Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
- Hydraulic tilt table makes slab loading safe and easy
- Laser cutting guide ensures precise, accurate cuts
- Supports blades up to 550 mm, ideal performance at 400 mm
- Motorized head movement with 45° tilt for mitre cuts
- 360° rotating table with lock points for flexible positioning
- Dual cutting modes with programmable automatic operation

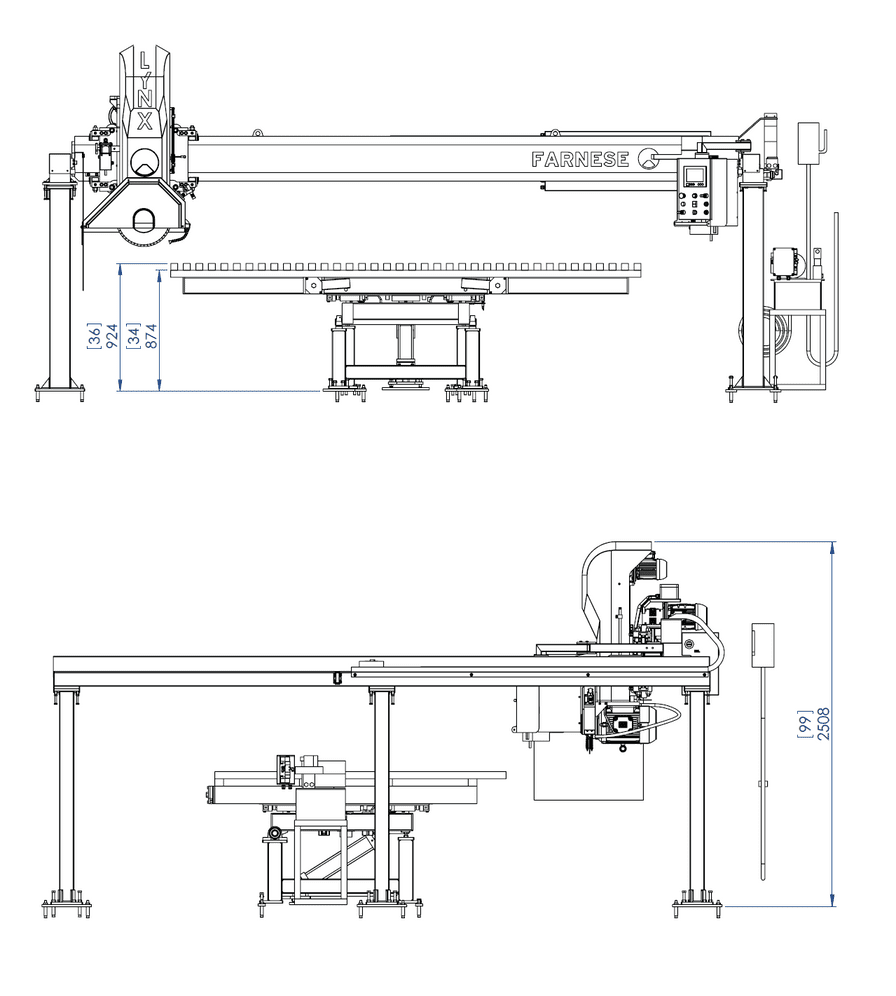

Technical Specifications
| Dimensions of Installed Machine | Metric | Imperial |
|---|---|---|
|
Length |
5400 mm |
212.6 in
|
|
Width |
4700 mm
|
185.0 in |
|
Height |
2500 mm |
98.4 in |
|
Weight |
2700 kg
|
5940 lb |
|
|
||
|
Table |
||
|
Length |
3400 mm
|
133.9 in |
|
Width |
2000 mm |
78.7 in
|
|
Height |
920 mm
|
36.2 in |
|
Rotation |
YES |
|
|
Tilt |
YES |
|
|
|
||
|
Features and Feeds |
||
|
X Stroke (Cross Travel Stroke) |
3700 mm
|
145.7 in
|
|
Y Stroke (Long Travel Stroke) |
3700 mm |
145.7 in |
|
Z Stroke (Head Up and Down) |
280 mm
|
11 in
|
|
Wireless Remote |
YES |
|
|
Blade Diameter (Max) |
550 mm |
22 in
|
|
Blade Shaft Diameter |
60 mm |
2.36 in |
|
Blade Tilt |
0 – 45° |
0 – 45° |
|
Manual Lubrication |
YES |
|
|
Back Clamps |
YES |
|
|
Main Spindle Power
|
11 kW |
20 hp |
|
Main Spindle Speed
|
YES |
YES |
|
Power Required |
400v 3ph 50Hz |
208v 3ph 60Hz |
|
32A+ Neutral |
50A |
|
|
Connections Required (Supplied By Customer): |
Power, Water, Compressed Air |
|
|
Tooling |
Consult Your Local Farnese Dealer For Any Tooling Required |
|
