Luca 360
360° Rotating Cutting head

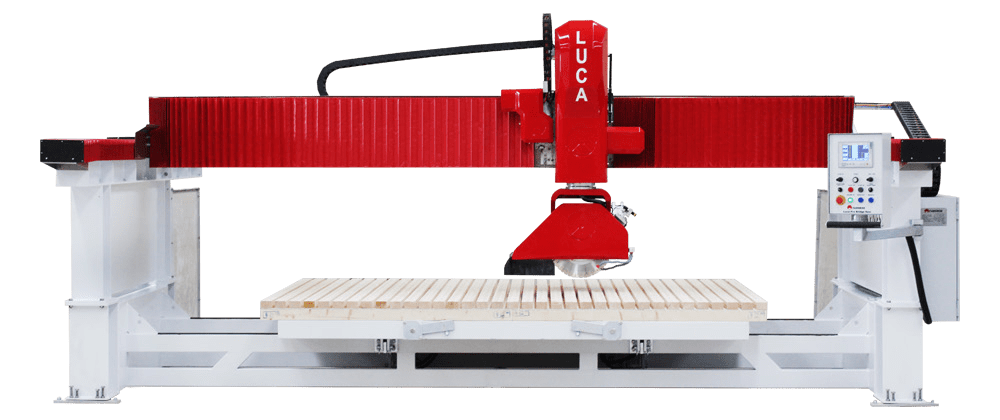

The LUCA 360 is a 4-axis bridge saw designed for accuracy and versatility. Its monoblock construction ensures easy installation. The machine is controlled via a pendant station, utilizing a PLC system for smooth operation of the X, Y, Z axes and rotation. A homing system quickly returns the blade to a safe position at the touch of a button. The motorized X and Z axes allow for variable cutting speeds and easy blade adjustment. Pneumatic tilting of the blade to 45° facilitates miter cuts.
.
YEARS OF INDUSTRY
EXPERIENCE
Farnese is a designer and manufacturer of its products. Knowing our products entirely,
including every technical detail, gives us an advantage over the opposition.
Summary of Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
- Manual and automatic cutting modes
- Automatic calculation and compensation for blade thickness in automatic mode
- Multiple cut programming (up to 9 different cuts, each repeatable up to 99 times)
- Laser cutting guide for precise manual operation
- Table tilts from 0° to 80° for easy loading and unloading of slabs
- Heavy-duty hydraulic pistons for table tilting

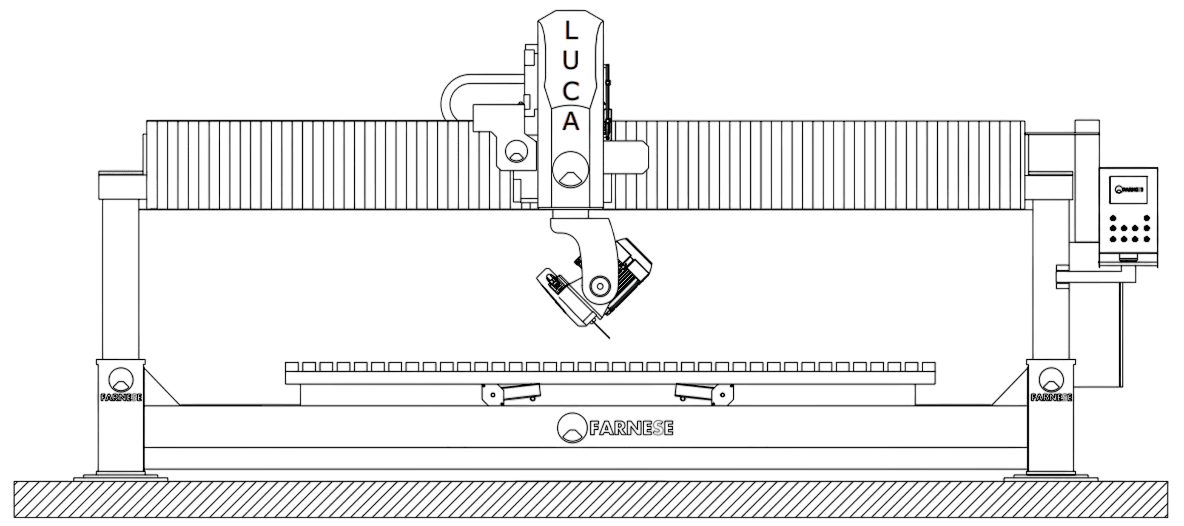

Technical Specifications
| Dimensions of Installed Machine | Metric | Imperial |
|---|---|---|
|
Length |
5850 mm |
230.3 in |
|
Width |
4300 mm |
169.3 in |
|
Height |
2600 mm |
102.4 in |
|
Weight |
3000 kg |
6600 lb |
|
|
||
|
Table |
||
|
Length |
3600 mm |
141.7 in |
|
Width |
1800 mm |
70.9 in |
|
Height |
660 mm |
26.0 in |
|
Rotation |
No |
No |
|
Tilt |
Yes |
Yes |
|
|
||
|
Features and Feeds |
||
|
X Stroke (Cross Travel Stroke) |
3800 mm |
149.6 in |
|
Y Stroke (Long Travel Stroke) |
2700 mm |
106.3 in |
|
Z Stroke (Head Up and Down) |
300 mm |
11.8 in |
|
Blade Diameter (Recommended) |
450 mm |
18 in |
|
Blade Diameter (Max) |
550 mm |
22 in |
|
Blade Shaft Diameter |
60 mm |
2.36 in |
|
Blade Tilt |
0 – 45° |
0 – 45° |
|
Head Rotation |
0-360° |
0-360° |
|
Automatic Lubrication |
Yes |
Yes |
|
Laser Cutting Guide |
YES |
YES |
|
Main Spindle Power |
11 kW |
120 hp |
|
Main Spindle Speed |
1440 rpm |
20 rpm |
|
Power Required |
400v 3ph 50Hz |
208v 3ph 60Hz |
|
32A+ Neutral |
60A |
|
|
Connections Required (Supplied By Customer): |
Power, Water, Compressed Air |
|
|
Tooling |
Consult Your Local Farnese Dealer For Any Tooling Required |
|
*Owing to the constant updating of our designs, descriptions and technical data shown in our drawings and folders are not binding. Possible alterations deemed by the makers as convenient will be effected at any time without previous notice.
