Legend Gen2
Ideal CNC for large Benchtops
The Farnese Legend Gen2 is a cost-effective, large-table, 3-axis CNC work center designed for all aspects of modern benchtop manufacturing. Its generous size allows for the efficient processing of both large and small workpieces, either individually or in batches. The monoblock design simplifies installation and commissioning, ensuring a quick transition to production.
.
YEARS OF INDUSTRY
EXPERIENCE
Farnese is a designer and manufacturer of its products. Knowing our products entirely,
including every technical detail, gives us an advantage over the opposition.
Summary of Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
- Full-size 3-axis CNC
- Includes Taglio CAD/CAM software
- Touchscreen control
- Easy sink cutouts and tap holes
- Internal/external edge profiling and polishing
- Automatic lubrication system
- Automatic tool change with 32 positions
- Recessed drainboards and inclined grooves

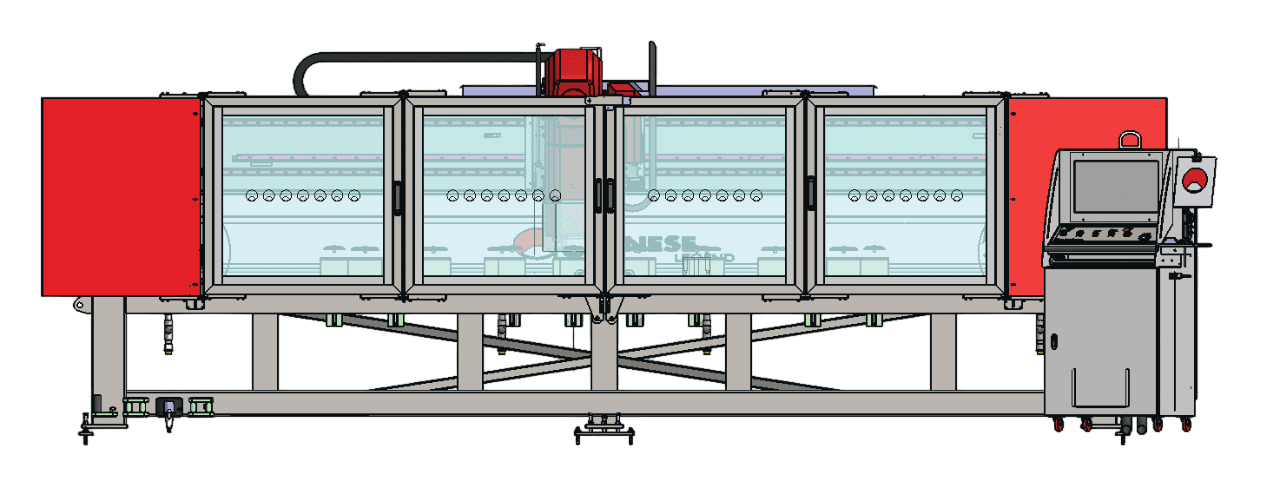

Technical Specifications
| Dimensions of Installed Machine | Metric | Imperial |
|---|---|---|
|
Length |
6584 mm |
259.2 in |
|
Width |
3660 mm |
144.1 in |
|
Height |
2500 mm |
98.4 in |
|
Weight |
5100 kg |
11243 lb |
|
|
||
|
Max Size Of Slab |
||
|
Length |
4000 mm |
157.5 in |
|
Width |
2000 mm |
78.7 in |
|
|
||
|
Features and Feeds |
||
|
X Stroke (Cross Travel Stroke) |
4600 mm |
181.1 in |
|
Y Stroke (Long Travel Stroke) |
2200 mm |
86.6 in |
|
Z Stroke (Head Up and Down) |
200 mm |
7.9 in |
|
Air Pressure (Working) |
7 bar |
102 psi |
|
Air Pressure (Consumption) |
425 l/min |
15 g/min |
|
Water (Consumption) |
Clear |
6.5 l/min |
|
Recycled |
50 l/min |
|
|
Magazine |
Yes / 32 Pos |
Yes / 32 Pos |
|
Back Clamps |
Yes |
Yes |
|
Front Clamps |
Yes / 2X |
Yes / 2X |
|
Automatic Greasing |
Yes |
Yes |
|
Laser Cutting Guide |
Yes |
Yes |
|
Microsoft Windows Compatible |
Yes |
Yes |
|
Automatic Tool Changer |
Yes |
Yes |
|
Handwheel |
Yes |
Yes |
|
Main Spindle Power (Min & Max) |
15 kW |
20 hp |
|
Main Spindle Speed |
4500 – 10000 rpm |
4500 – 10000 rpm |
|
Power Required |
400V 3ph 50Hz |
208v 3ph 60Hz |
|
30A + Neutral |
60A |
|
|
Connections Required (Supplied By Customer): |
Power, Water, Compressed Air |
|
|
Tooling |
Consult Your Local Farnese Dealer For Any Tooling Required |
|
*Owing to the constant updating of our designs, descriptions and technical data shown in our drawings and folders are not binding. Possible alterations deemed by the makers as convenient will be effected at any time without previous notice.
