Your trusted manufacturer supplying stone machinery, woodworking machinery and all stone tooling and equipment.
1
Benefits
Easy To Use Interface
Like all Farnese equipment, we’ve made the Filter Press simple to use, with everything available from an intuitive, easy to use touch screen control panel.
2
Benefits
10 Press Filters
10 Press Filters take care of compacting and dewatering the particulate, before discharging the compressed bricks into the mobile sludge cart positioned below.
3
Benefits
Automatic Sludge Control
Its automatic sludge control system ensures optimal performance by continuously adjusting sludge levels without manual intervention.
Filter Press

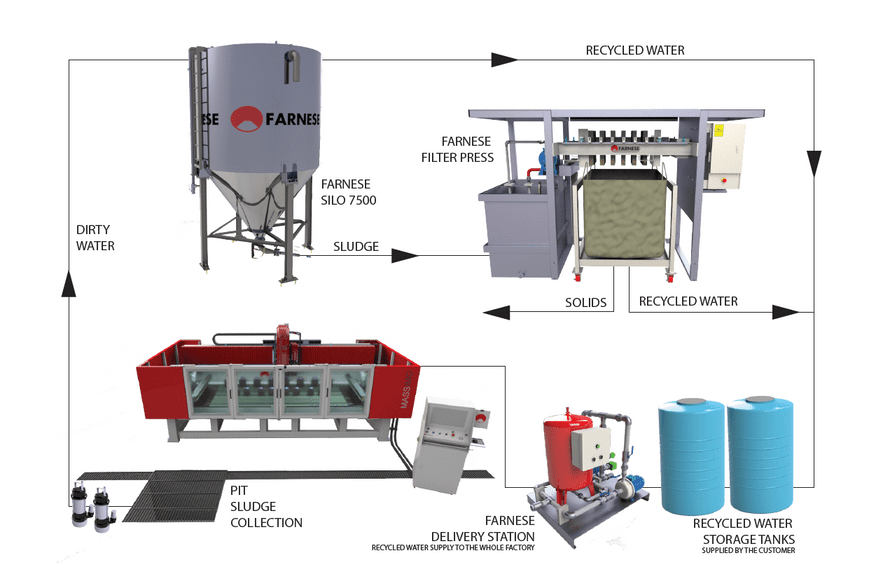

With clean recycled water being an ever more important part of the stone fabrication industry, the addition of a filter press into your water treatment system makes perfect sense. Not only environmentally, but economically.
Efficient wastewater treatment actually saves you money in the long term. Removing the solids from your water before recycling it back through your equipment helps to reduce everyday wear and tear. Tighter regulations around contaminates and particulate matter means that all factories should be paying attention to their recycled water systems.

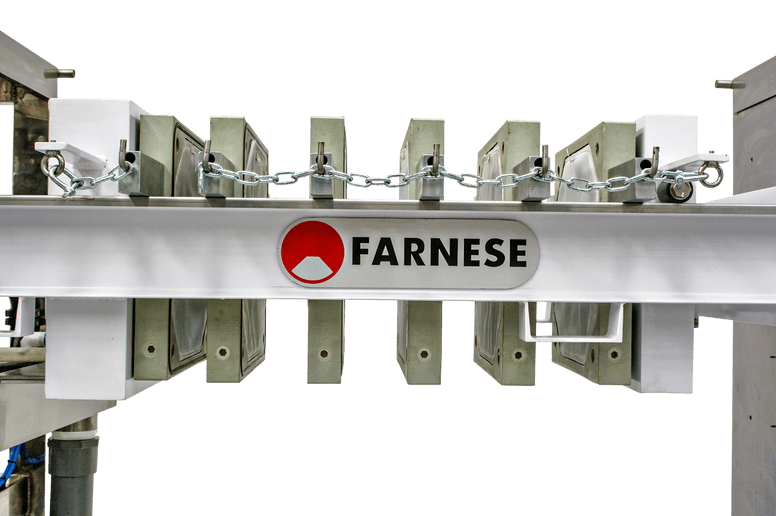

The Farnese Filterpress ensures better separation of the sludge by dewatering and compacting the particulate into a compressed brick-like waste product that will be released into a movable cart for easy disposal. The result is more usable recycled water, saving money and further reducing operating costs.
.
YEARS OF INDUSTRY
EXPERIENCE
Farnese is a designer and manufacturer of its products. Knowing our products entirely,
including every technical detail, gives us an advantage over the opposition.
Summary of Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
- Touchscreen interface
- Automatic sludge control
- Equipped with 10 press filters
- 650-liter capacity
- Easy maintenance and outdoor installation

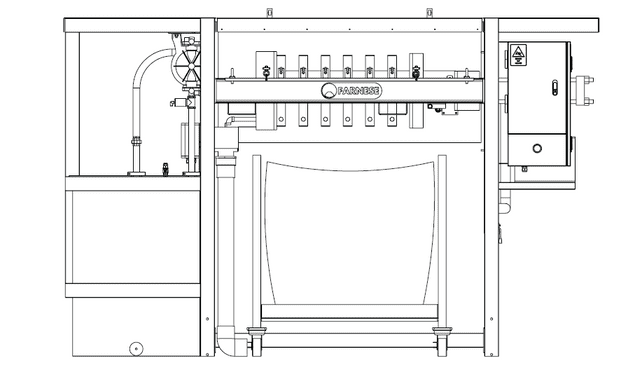

Technical Specifications
| Dimensions of Installed Machine | Metric | Imperial |
|---|---|---|
|
Width |
3000 mm |
118.1 in |
|
Depth
|
1130 mm |
44.5 in |
|
Height |
1960 mm |
77.2 in |
|
Weight |
900 kg |
1980 lb |
|
|
||
|
Features & Feeds: |
||
|
Mixing Station |
YES |
|
|
Automatic Sludge Control |
YES |
|
|
Touchscreen Interface |
YES |
|
|
Big Bag Trolley |
YES |
|
|
Automatic Sludge Dumping
|
YES |
|
|
Dripping Tank
|
YES |
|
|
Mixing Tank Capacity |
650 Litres
|
171.7 GAL |
|
Number of Filters |
10 |
|
|
Power Required |
400V 3ph 50Hz |
208V 3ph 60Hz |
|
10A + Neutral
|
20A |
|
|
Connections Required (Supplied By Customer) |
Power, Water, Compressed Air |
|
This equipment can be installed outdoors, consult your local Farnese dealer.
CONSULT YOUR LOCAL FARNESE DEALER FOR ANY TOOLING REQUIRED.
