The All-in-One CNC Solution for Stone Shops
The Alexia Gen 2 is a versatile CNC machine suitable for stone shops of all sizes, offering high accuracy and efficiency for both low and high-volume production. Its multi-functional capabilities (cutting, drilling, and polishing) and user-friendly interface make it ideal for various applications.

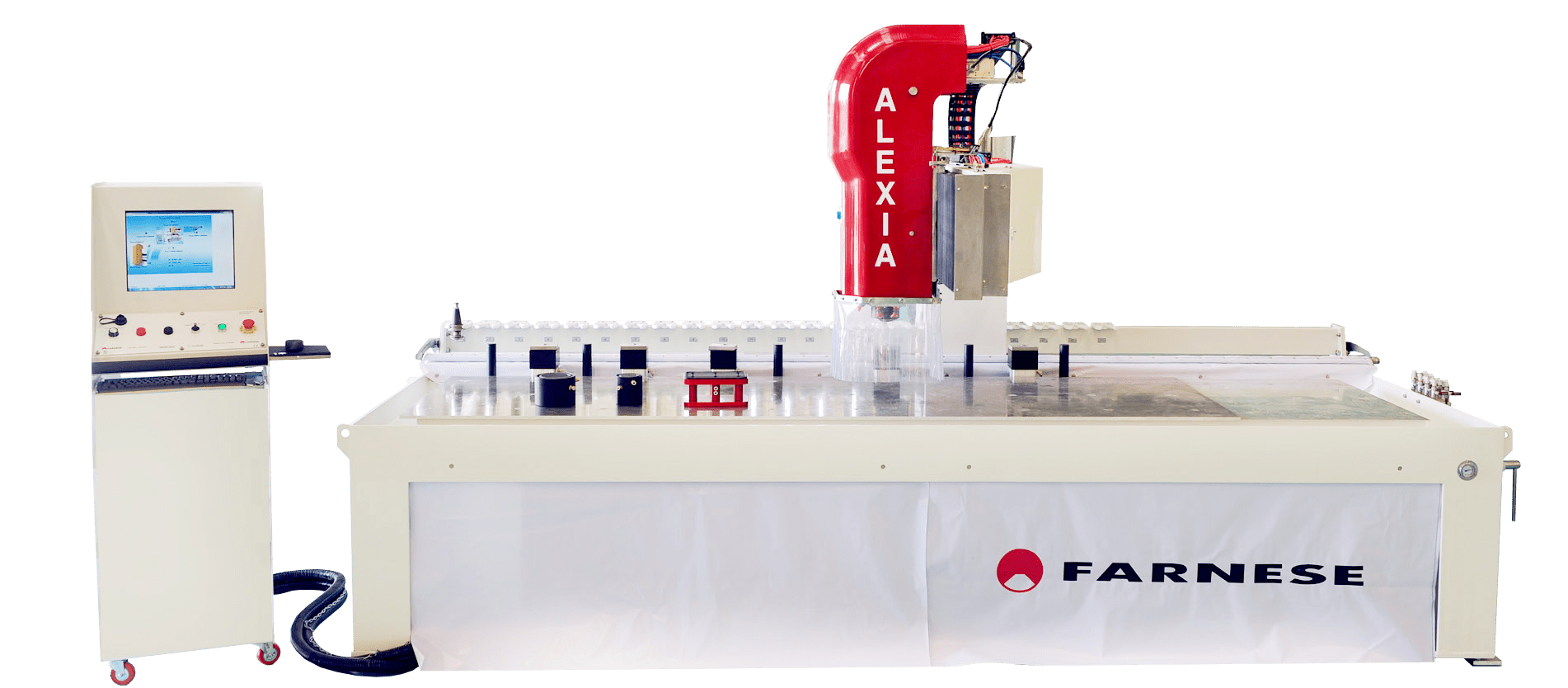

Alexia Gen2
Do undermounts with ease
The Alexia Gen 2 is designed for efficiency and ease of use. With 23 tool stations and automatic tool changing, it can perform a wide range of operations, including cutting, drilling, and polishing complex shapes. The intuitive MS Windows-based operating system simplifies setup and programming, even for less experienced operators. Pre-loaded sink templates from major brands and optional tool sets for edge profiling expand its capabilities. The machine can even create inclined draining grooves.
.
YEARS OF INDUSTRY
EXPERIENCE
Farnese is a designer and manufacturer of its products. Knowing our products entirely,
including every technical detail, gives us an advantage over the opposition.
Summary of Features
With all Farnese machines, we pride ourselves on making features simple to use. Our commitment to intuitive design ensures ease of operation and minimal training requirements.
- 23 tool stations
- Easy sink cut outs
- Edge profiling and polishing
- Easy to use interface and software
- Automatic lubrication system
- After sales service
- Australian company
- Local supply of spare parts
- Remote access for troubleshooting help. Requires Internet access

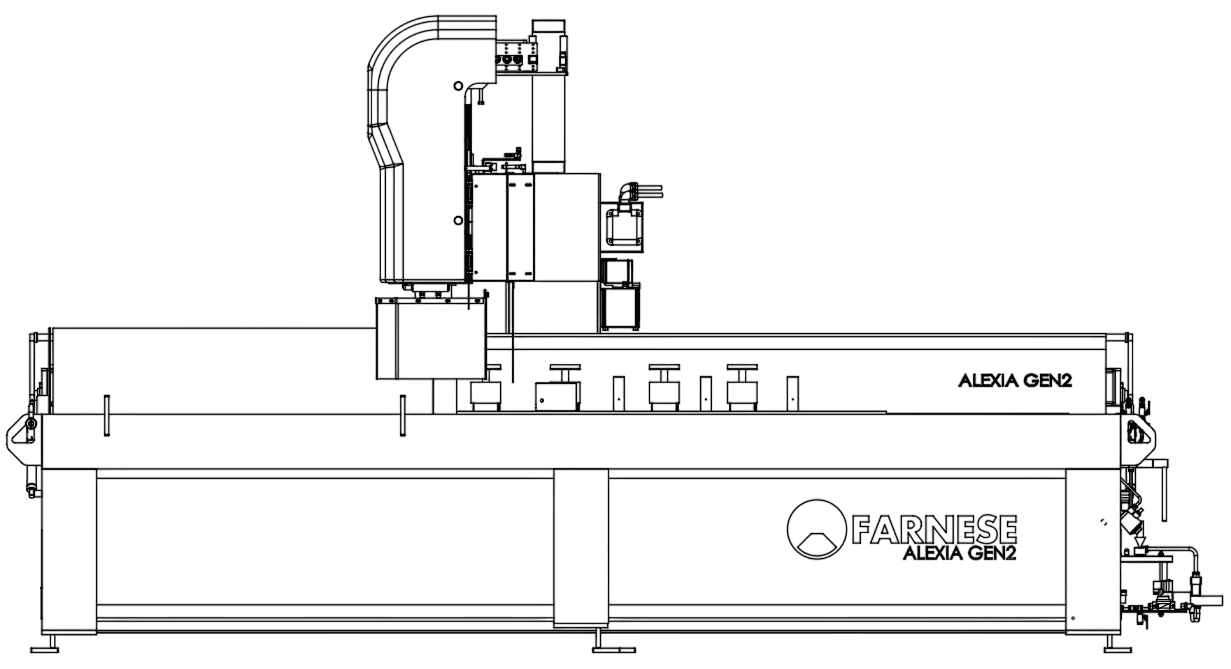

Technical Specifications
| Dimensions of Installed Machine | Metric | Imperial | |
|---|---|---|---|
|
Length |
4500 mm |
165.4 in |
|
|
Width |
2200 mm |
86.6 in |
|
|
Height |
2300 mm |
90.6 in |
|
|
Weight |
2500 kg |
5500 lb |
|
|
|
|||
|
Table |
|||
|
Length |
4000 mm |
157.5 in |
|
|
Width |
1700 mm |
66.9 in |
|
|
|
|||
|
Features and Feeds |
|||
|
X Stroke (Cross Travel Stroke) |
3000 mm |
118.1 in |
|
|
Y Stroke (Long Travel Stroke) |
1100 mm |
43.3 in |
|
|
Z Stroke (Head Up and Down) |
200 mm |
7.9 in |
|
|
Air Pressure (Working) |
6 bar |
87 psi |
|
|
Air Pressure (Consumption) |
350 l/min |
12.3 cfm |
|
|
Water (Consumption) |
6.5 l/min |
1.7 gal/min |
|
|
Magazine |
Clear |
7 / 6 POS |
|
|
Recycled |
12 / 22 POS |
||
|
Vacuum Cups |
Yes |
Yes |
|
|
Vacuum Generator |
Yes |
Yes |
|
|
Back Clamps |
Yes |
Yes |
Yes |
|
Front Clamps |
Yes |
Yes |
|
|
Automatic Greasing |
No |
No |
|
|
Laser Cutting Guide |
Yes |
Yes |
|
|
Microsoft Windows Compatible |
Yes |
Yes |
|
|
Automatic Tool Changer |
Yes |
Yes |
|
|
Handwheel |
Yes |
Yes |
|
|
Main Spindle Power (Min & Max) |
6.6 kW |
8.8 hp |
|
|
Main Spindle Speed |
500 – 1200 rpm |
500 – 1200 rpm |
|
|
Power Required |
400V 3ph 50Hz |
208v 3ph 60Hz |
|
|
20A + Neutral |
40A |
||
|
Connections Required (Supplied By Customer): |
Power, Water, Compressed Air |
||
|
Tooling |
Consult Your Local Farnese Dealer For Any Tooling Required |
||
*Owing to the constant updating of our designs, descriptions and technical data shown in our drawings and folders are not binding. Possible alterations deemed by the makers as convenient will be effected at any time without previous notice.
